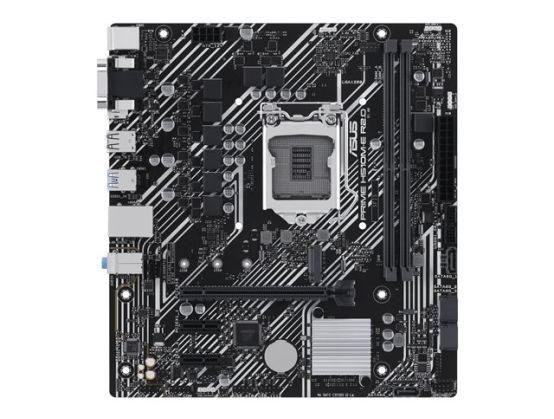

ASUS PRIME H510M-E R2.0 - motherboard - micro ATX - LGA1200 Socket - H470

Name: ASUS PRIME H510M-E R2.0 - motherboard - micro ATX - LGA1200 Socket - H470
Brand: ASUS
SKU: 1TCPTMOT-004748
Price: 80.17 GBP
Availability: OutOfStock

SKU

1TCPTMOT-004748

Manufacture#: PRIME H510M-E R2.0

£66.81

£80.17 inc VAT

Checking delivery…

Product details

Motherboard
micro ATX
LGA1200 Socket
H470 Chipset

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

ASUS PRIME H510M-E R2.0
Motherboard
micro ATX
LGA1200 Socket
H470 Chipset
USB 3.2 Gen 1
Gigabit LAN
onboard graphics (CPU required)
HD Audio (8-channel)

Overview

ASUS PRIME H510M-E R2.0 - motherboard - micro ATX - LGA1200 Socket - H470

Specification

Product Description ASUS PRIME H510M-E R2.0 - motherboard - micro ATX - LGA1200 Socket - H470

Product Type Motherboard - micro ATX

Chipset Type Intel H470

Processor Socket 1 x LGA1200 Socket

Compatible Processors (supports 11th and 10th Generation Intel Core / Pentium Gold / Celeron)

Max RAM Size 64 GB

RAM Supported 2 DIMM slots - DDR4, non-ECC, unbuffered

Storage Ports 4 x SATA-600, 1 x M.2

USB / FireWire Ports 4 x USB 3.2 Gen 1 + 2 x USB 2.0 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)

Audio HD Audio (8-channel)

LAN Gigabit Ethernet

General

Product Type Motherboard - micro ATX

Chipset Type Intel H470

Processor Socket LGA1200 Socket

Max Processors Qty 1

Compatible Processors (supports 11th and 10th Generation Intel Core / Pentium Gold / Celeron)

Supported RAM

Max Size 64 GB

Technology DDR4

Bus Clock 2400 MHz, 2133 MHz, 2800 MHz, 2666 MHz, 2933 MHz, 3000 MHz (O.C.), 3200 MHz (O.C.)

Supported RAM Integrity Check Non-ECC

Registered or Buffered Unbuffered

Features Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)

Audio

Type HD Audio (8-channel)

Compliant Standards High Definition Audio

LAN

Network Interfaces Gigabit Ethernet

Expansion / Connectivity

Expansion Slots 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 2 x PCIe 3.0 x1

Storage Interfaces SATA-600 -connectors: 4 x 7pin Serial ATA ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2

Interfaces 1 x HDMI ¦ 1 x VGA ¦ 1 x DisplayPort ¦ 4 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x PS/2 keyboard ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x PS/2 mouse ¦ 1 x LAN (Gigabit Ethernet)

Internal Interfaces 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x SPDIF out - header ¦ 1 x audio - header ¦ 1 x speaker - header

Power Connectors 24-pin main power connector, 8-pin ATX12V connector

Features

BIOS Type AMI

BIOS Features UEFI BIOS, ASUS EZ Flash 3

Sleep / Wake Up Wake on LAN (WOL), wake on PME

Hardware Features Jack retasking, ASUS Q-Design, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS Fan Xpert, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, LANGuard, ASUS Overvoltage Protection, ASUS 5X Protection III, ASUS SafeSlot Core, Intel Turbo Boost Max Technology 3.0, Armoury Crate, Q-LED Core

Miscellaneous

Included Accessories I/O back plate, 1 x M.2 screw

Cables Included 2 x Serial ATA cable

Software Included ASUS AI Charger, ASUS CPU-Z, ASUS AI Suite III, ASUS EZ Update, WinRAR, Norton 360 Deluxe (60 days trial)

Compliant Standards DisplayPort 1.4

Width 22.6 cm

Depth 21.1 cm
