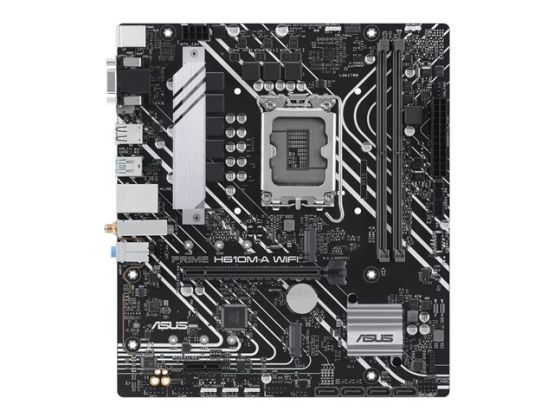

ASUS PRIME H610M-A WIFI - motherboard - micro ATX - H610

Name: ASUS PRIME H610M-A WIFI - motherboard - micro ATX - H610
Brand: ASUS
SKU: 1TCPTMOT-004893
Price: 115.39 GBP
Availability: OutOfStock

SKU

1TCPTMOT-004893

Manufacture#: PRIME H610M-A WIFI

£96.16

£115.39 inc VAT

Checking delivery…

Product details

Motherboard
micro ATX
H610 Chipset
USB 3.2 Gen 1, USB 3.2 Gen 2

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

ASUS PRIME H610M-A WIFI
Motherboard
micro ATX
H610 Chipset
USB 3.2 Gen 1, USB 3.2 Gen 2
Gigabit LAN, Wi-Fi, Bluetooth
onboard graphics (CPU required)
HD Audio (8-channel)

Overview

ASUS PRIME H610M-A WIFI - motherboard - micro ATX - H610

Specification

Product Description ASUS PRIME H610M-A WIFI - motherboard - micro ATX - H610

Product Type Motherboard - micro ATX

Chipset Type Intel H610

Processor Socket 1

Compatible Processors (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)

Max RAM Size 96 GB

RAM Supported 2 DIMM slots - DDR5, non-ECC, unbuffered

Storage Ports 4 x SATA-600, 1 x M.2

USB / FireWire Ports 1 x USB 3.2 Gen 2 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 3 x USB 2.0 via headers)

Audio HD Audio (8-channel)

LAN Gigabit Ethernet, 802.11a/b/g/n/ac, Bluetooth 5.0

General

Product Type Motherboard - micro ATX

Chipset Type Intel H610

Max Processors Qty 1

Compatible Processors (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)

Supported RAM

Max Size 96 GB

Technology DDR5

Bus Clock 4800 MHz, 5200 MHz, 5000 MHz, 5600 MHz, 5400 MHz

Supported RAM Integrity Check Non-ECC

Registered or Buffered Unbuffered

Features Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)

Audio

Type HD Audio (8-channel)

Compliant Standards High Definition Audio

LAN

Network Interfaces Gigabit Ethernet, 802.11a/b/g/n/ac, Bluetooth 5.0

Expansion / Connectivity

Expansion Slots 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x1 ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot)

Storage Interfaces SATA-600 -connectors: 4 x 7pin Serial ATA ¦ PCIe 3.0 -connectors: 2 x M.2

Interfaces 1 x HDMI ¦ 1 x VGA ¦ 1 x USB 3.2 Gen 2 ¦ 4 x USB 2.0 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x PS/2 keyboard ¦ 1 x PS/2 mouse ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack

Internal Interfaces 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 1 - header ¦ 1 x USB 2.0 - header ¦ 2 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x SPI - header ¦ 1 x speaker - header ¦ 1 x serial - header

Power Connectors 24-pin main power connector, 8-pin ATX12V connector

Features

BIOS Type AMI

BIOS Features UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode

Sleep / Wake Up Wake on LAN (WOL), wake on PME

Hardware Features Jack retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, LANGuard, overvoltage protection, ASUS 5X Protection III, ASUS SafeSlot Core, Intel Turbo Boost Max Technology 3.0, Windows 11 compatible, Q-LED Core, VRM heatsink design

Miscellaneous

Included Accessories IO shield, ASUS Wi-Fi moving aerial, M.2 screw package

Cables Included 2 x Serial ATA cable

Software Included ASUS CPU-Z, ASUS AI Suite III, PC Cleaner, WinRAR, ASUS AURA Creator, Armoury Crate, Norton 360 Deluxe (60 days trial), ASUS Fan Xpert 2+

Width 24.4 cm

Depth 21.6 cm
