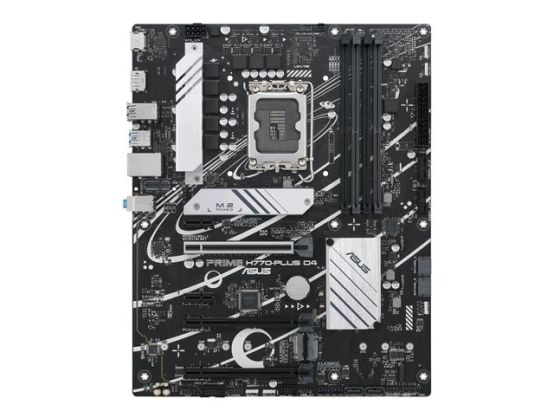

ASUS PRIME H770-PLUS D4 - Motherboard - ATX - LGA1700 Socket - H770 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB4, USB-C 3.2 Gen2 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
USB 3.2 Gen 1, USB 3.2 Gen 2, USB4, USB-C 3.2 Gen2
2.5 Gigabit LAN
onboard graphics (CPU required)
HD Audio (8-channel)
Overview
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel Core processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B770-PLUS D4 provides users and PC DIY builders with a range of performance optimizations via firmware features.
USB / FireWire Ports1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 2 + 3 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB4 + 4 x USB 3.2 Gen 1 + 3 x USB 2.0 via headers)
Interfaces1 x DisplayPort ¦ 1 x HDMI ¦ 1 x USB-C 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 2 ¦ 3 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack
Internal Interfaces4 x USB 3.2 Gen 1 - header ¦ 3 x USB 2.0 - header ¦ 1 x serial - header ¦ 1 x audio - header ¦ 1 x SPDIF out - header ¦ 1 x SPI - header ¦ 1 x Thunderbolt - header
Power Connectors24-pin main power connector, 8-pin ATX12V connector
Features
BIOS TypeAMI
BIOS FeaturesUEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode
Sleep / Wake UpWake on LAN (WOL), wake on PME
Hardware FeaturesJack retasking, Q-DIMM, Q-Slot, CrashFree BIOS 3, audio jack detect technology, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, LANGuard, overvoltage protection, ASUS 5X Protection III, M.2 heatsink, ASUS ProCool, Intel Turbo Boost Max Technology 3.0, ASUS OptiMem, ASUS Aura Sync, ASUS SafeSlot Core+, DIY Friendly Design, Q-LED Core, VRM heatsink design
Miscellaneous
Included AccessoriesIO shield, 1 x M.2 rubber package, 2 x M.2 SSD screw package
Cables Included2 x Serial ATA cable
Software IncludedASUS CPU-Z, ASUS AI Suite III, PC Cleaner, WinRAR, ASUS AURA Creator, Armoury Crate, Norton 360 Deluxe (60 days trial), ASUS Fan Xpert 2+
