Dressed in a professional attire, the Prime X570 series cater to users with serious pursuits in mind, who prefer to put their Ryzen processors to more productive use. Prime X570, known for its all-around specs and ASUS signature features, includes a wide range of tuning options for accessible performance.
Expansion Slots1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (with 3rd Generation Ryzen CPU); PCIe 3.0 x16 mode (with 2nd Generation Ryzen CPU); PCIe 3.0 x8 mode (with Ryzen CPU with Radeon Vega Graphics / 2nd Generation Ryzen CPU with Radeon Graphics)) ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 3 x PCIe 4.0 x1
Storage InterfacesSATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 4.0 -connectors: 2 x M.2
Interfaces1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 2 x USB 3.2 Gen 1 ¦ 4 x USB 3.2 Gen 2 ¦ 2 x USB 2.0 ¦ 1 x HDMI ¦ 1 x PS/2 keyboard / mouse
Internal Interfaces5 x USB 2.0 - header ¦ 1 x SPDIF out - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x serial - header
Power Connectors4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
Features
BIOS TypeAMI
BIOS FeaturesWfM 2.0 support, Multilingual BIOS, ASUS Quiet Thermal Solution, UEFI BIOS, ASUS EZ Flash 3, SMBIOS 3.2 support, ACPI 6.2 support
Sleep / Wake UpWake on LAN (WOL), wake on PME
Hardware FeaturesJack retasking, ASUS Q-Design, ESD Guards, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, AMD CrossFireX technology support, ASUS Enhanced DRAM Overcurrent Protection, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, LANGuard, ProCool Power Connector, ASUS Overvoltage Protection, AURA RGB Lighting Control, ASUS Fan Xpert 4, ASUS 5X Protection III, ASUS SafeSlot Core, ASUS OptiMem, Armoury Crate, 8+4 DrMOS power stages
Miscellaneous

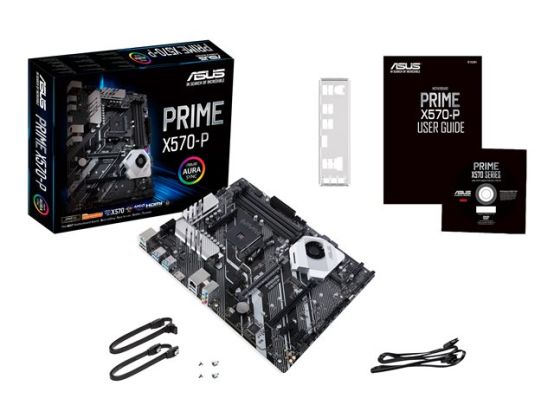

Included Accessories1 x M.2 screw, I/O back cover, RGB Addressable LED extension cable
Cables Included2 x Serial ATA cable
Software IncludedDrivers & Utilities, ASUS AI Charger, ASUS AI Suite III
