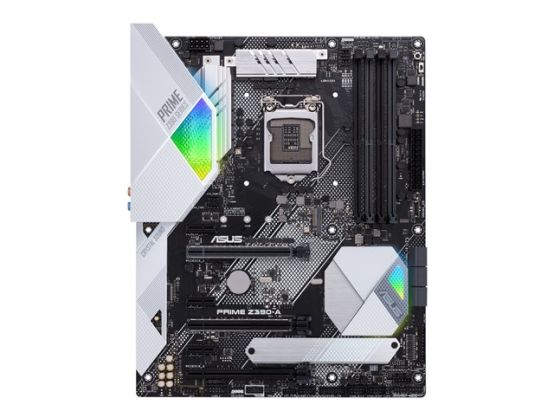

ASUS PRIME Z390-A - Motherboard - ATX - LGA1151 Socket - Z390 Chipset - USB 3.1 Gen 1, USB-C Gen2, USB 3.1 Gen 2 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)

Name: ASUS PRIME Z390-A - Motherboard - ATX - LGA1151 Socket - Z390 Chipset - USB 3.1 Gen 1, USB-C Gen2, USB 3.1 Gen 2 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Brand: ASUS
SKU: 1TCPTMOT-003701
Price: 185.84 GBP
Availability: OutOfStock

SKU

1TCPTMOT-003701

Manufacture#: PRIME Z390-A

£154.87

£185.84 inc VAT

Checking delivery…

Product details

Motherboard
ATX
LGA1151 Socket
Z390 Chipset

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

ASUS PRIME Z390-A
Motherboard
ATX
LGA1151 Socket
Z390 Chipset
USB 3.1 Gen 1, USB-C Gen2, USB 3.1 Gen 2
Gigabit LAN
onboard graphics (CPU required)
HD Audio (8-channel)

Overview

Dressed in professional attire, the Prime Z390 series caters to daily users and content creators with well-rounded specs and features. Prime Z390 provides a wealth of options for performance tuning via intuitive software and firmware features.

Specification

Product Description ASUS PRIME Z390-A - motherboard - ATX - LGA1151 Socket - Z390

Product Type Motherboard - ATX

Chipset Type Intel Z390

Processor Socket 1 x LGA1151 Socket

Compatible Processors Pentium, Celeron, Core i5, Core i3, Core i7, Core i9 (supports 9th and 8th Generation Intel Core)

Max RAM Size 64 GB

RAM Supported 4 DIMM slots - DDR4, non-ECC, unbuffered

Storage Ports 6 x SATA-600 (RAID), 2 x M.2

USB / FireWire Ports 1 x USB-C Gen 2 + 3 x USB 3.1 Gen 2 + 2 x USB 3.1 Gen 1 + 2 x USB 2.0 + (1 x USB-C Gen 1 + 2 x USB 3.1 Gen 2 + 6 x USB 2.0 via headers)

Max Allocated RAM Size 1 GB

Audio HD Audio (8-channel)

LAN Gigabit Ethernet

Manufacturer Warranty 3-year warranty

General

Product Type Motherboard - ATX

Chipset Type Intel Z390

Processor Socket LGA1151 Socket

Max Processors Qty 1

Compatible Processors Pentium, Celeron, Core i5, Core i3, Core i7, Core i9 (supports 9th and 8th Generation Intel Core)

Supported RAM

Max Size 64 GB

Technology DDR4

Bus Clock 2400 MHz, 2133 MHz, 2666 MHz, 2800 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4266 MHz (O.C.)

Supported RAM Integrity Check Non-ECC

Registered or Buffered Unbuffered

Features Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)

Graphics

Max Allocated RAM Size 1 GB

Audio

Type HD Audio (8-channel)

Audio Codec Realtek ALCS1220A

Compliant Standards High Definition Audio, DTS Headphone:X

LAN

Network Controller Intel I219V

Network Interfaces Gigabit Ethernet

Expansion / Connectivity

Expansion Slots 1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 3.0 x16 (dual x8 mode; single card: x16 mode) ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 3 x PCIe 3.0 x1

Storage Interfaces SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 ¦ PCIe 3.0 -connectors: 1 x M.2

RAID Features Intel Rapid Storage Technology

Interfaces 1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) ¦ 2 x USB 3.1 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x TOSLINK ¦ 1 x DVI-D ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x PS/2 keyboard / mouse ¦ 3 x USB 3.1 Gen 2 ¦ 1 x USB-C Gen2

Internal Interfaces 6 x USB 2.0 - header ¦ 2 x USB 3.1 Gen 1 - header ¦ 1 x USB-C Gen 1 - header ¦ 1 x Thunderbolt - header ¦ 1 x audio - header ¦ 1 x serial - header

Power Connectors 24-pin main power connector, 8-pin ATX12V connector

Features

BIOS Type AMI

BIOS Features WfM 2.0 support, Multilingual BIOS, ASUS Quiet Thermal Solution, UEFI BIOS, ASUS EZ Flash 3, DMI 3.0 support, ACPI 6.1 support, SMBIOS 3.1 support

Sleep / Wake Up Wake on LAN (WOL), wake on PME

Hardware Features Jack retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, ASUS Q-Connector, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS Q-Shield, Intel Extreme Memory Profile (XMP) support, NVIDIA 2-way SLI Technology Support, Intel Turbo Boost Technology 2.0, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, Intel Clear Video HD Technology, Fanless Design Heatsink, AMD 3-way CrossFireX technology support, Intel InTru 3D Technology, Intel Insider, Intel Quick Sync Video, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, ASUS O.C. Tuner, Turbo LAN, Dual Intelligent Processors 5, LANGuard, ASUS Overvoltage Protection, ASUS Crystal Sound 3, AURA RGB Lighting Control, ASUS Fan Xpert 4, Intel Optane Memory Ready, ASUS 5X Protection III, ASUS SafeSlot Core, ASUS OptiMem II, MemOK! II

Miscellaneous

Included Accessories I/O back plate, 2 x M.2 screws, ASUS fan holder

Cables Included 3 x Serial ATA cable ¦ 1 x SLI bridge

Software Included Drivers & Utilities, ASUS Auto Tuning, ASUS AI Charger, ASUS AI Suite III, ASUS EZ Update, ASUS Turbo App, Antivirus (OEM version), ASUS Turbo Core App

Compliant Standards Plug and Play

Width 30.5 cm

Depth 24.4 cm

Manufacturer Warranty

Service & Support Limited warranty - parts and labour - 3 years
