USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1
2.5 Gigabit LAN, Wi-Fi 6, Bluetooth
onboard graphics (CPU required)
HD Audio (8-channel)
Overview

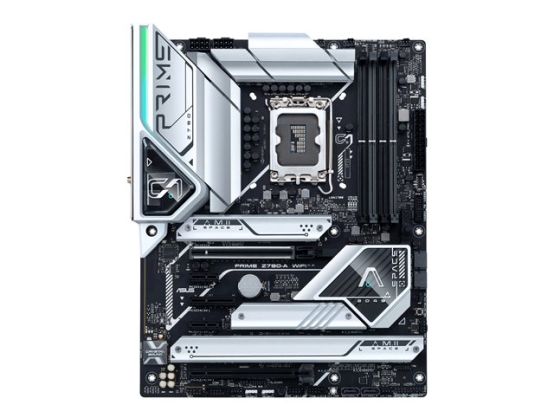

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel Core processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790-A Wi-Fi provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.¦The ASUS Prime Z790-A Wi-Fi offers this all in a sleek, futuristic-looking package centered around a spaceship design aesthetic, with a silver-toned nameplate and chipset cover.
Interfaces1 x HDMI ¦ 1 x DisplayPort ¦ 2 x aerial ¦ 1 x USB-C 3.2 Gen2x2 ¦ 2 x USB 3.2 Gen 2 ¦ 1 x USB-C 3.2 Gen 2 ¦ 4 x USB 3.2 Gen 1 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack
Internal Interfaces4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 2 - header ¦ 1 x serial - header ¦ 1 x SPI - header ¦ 1 x audio - header ¦ 1 x Thunderbolt - header
Power Connectors24-pin main power connector, 2 x 8-pin ATX12V connectors
Features
BIOS TypeAMI
BIOS FeaturesASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode
Sleep / Wake UpWake on PME, wake on LAN (WOL)
Hardware FeaturesASUS OptiMem II, Intel Turbo Boost Max Technology 3.0, Intel Turbo Boost Technology 2.0, Preboot eXecution Environment (PXE), CrashFree BIOS 3, ASUS EZ DIY, ASUS DIGI+ VRM, LANGuard, ASUS 5X Protection III, ESD Guards, overvoltage protection, ASUS SafeSlot, ASUS Stainless Steel Back I/O, ASUS Q-Design, M.2 Q-Latch, PCIe Slot Q-Release, ASUS Q-Connector, Q-DIMM, Q-LED, Q-Slot, M.2 heatsink, VRM heatsink design, Clear CMOS Button, CPU Socket lever protector, ASUS ProCool, pre-mounted I/O shield, SafeDIMM, ASUS Aura Sync, 16+1 Phase Power Design
Miscellaneous
Included AccessoriesASUS Wi-Fi moving aerial, 2 x M.2 rubber package, M.2 screw package, Q-Connector
Cables Included2 x Serial ATA cable
Software IncludedMemTest86, WinRAR, Norton 360 Deluxe (60 days trial), MyAsus, ASUS CPU-Z, PC Cleaner, ASUS TurboV EVO Utility, ASUS AI Suite III, ASUS Fan Xpert 4, ASUS AURA Creator, Armoury Crate
