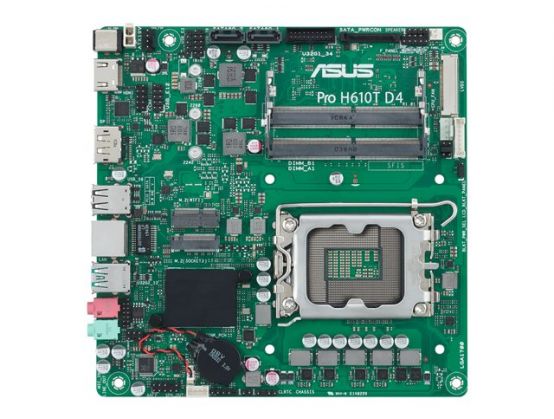

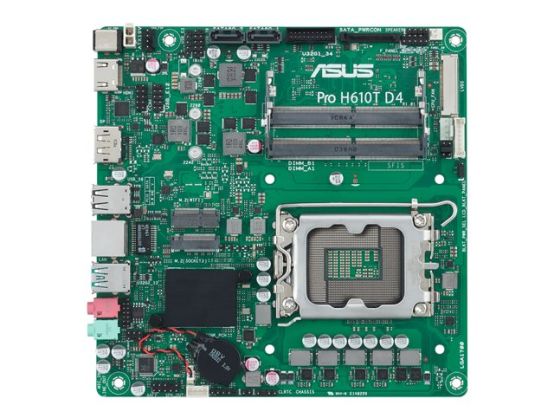

ASUS Pro H610T D4-CSM - Motherboard - Thin mini ITX - LGA1700 Socket - H610 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
The ASUS Pro business line of motherboards offers advanced features to simplify IT operations, including comprehensive system protection, 24/7 stability and reliability, and an enhanced management suite for easier customization. Known as the world's largest and best-known motherboard brand, ASUS offers top-notch after-sales service and guaranteed long-term availability to maximize your product lifecycle investment and delivers a high-quality, TCO-optimized solution for your business compute-needs.
Expansion Slots1 x CPU ¦ 2 x SO-DIMM 260-pin ¦ 1 x M.2 socket (Key E)
Storage InterfacesSATA-600 -connectors: 2 x 7pin Serial ATA ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2
Interfaces1 x HDMI ¦ 1 x DisplayPort ¦ 2 x USB 3.2 Gen 2 ¦ 2 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x LAN (Gigabit Ethernet)
Internal Interfaces5 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x serial - header ¦ 2 x speaker - header ¦ 1 x LVDS - header
Power Connectors2-pin power connector, DC-in power connector
Features
BIOS TypeAMI
BIOS FeaturesUEFI BIOS
Sleep / Wake UpWake on LAN (WOL), wake on PME
Hardware FeaturesPreboot eXecution Environment (PXE), Intel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, LANGuard, audio jack detect technology, jack retasking, Q-LED, ASUS Control Center Express (ACC Express)
Miscellaneous
Included Accessories2 x IO shields, ACC Express Activation Key Card
Cables Included2 x Serial ATA cable ¦ 1 x Serial ATA power cable
