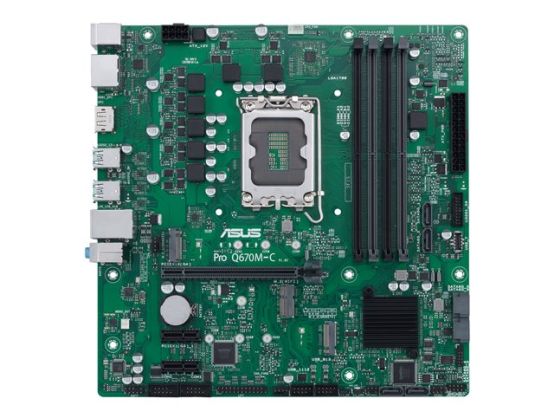

ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization.
Intel LGA 1700 socket - ready for 12th Gen Intel Core processors
ASUS CSM program - a stable motherboard supply, end-of-life notifications, and IT software for business motherboards
ASUS control center express - integrated IT monitoring and management software that simplifies enterprise-level system administration
Enhanced system security - boot defender with NIST SP 800-193 compliance, a self-recovering BIOS, and TPM to safeguard PCs
Consistent and reliable performance - high-quality components and rigorous testing to help ensure durability in harsh environments
Efficient management and customization - an event log and commercial BIOS kit to enable easy maintenance
Better serviceability - Q-LED diagnostic display and COM debug header to facilitate building and support processes
Internationally certified business motherboardASUS Business motherboards are enterprise proven with leading quality that exceeds industry standards. Certified by multiple international safety and environmental organizations, ASUS Business motherboards provide a safe, secure and sustainable solution, making them the ideal choice for your business.ASUS Boot DefenderASUS Boot Defender ensures your PC is secure even before you boot up the OS and offers additional protection beyond the OS environment. On start-up, it verifies the BIOS code to detect attacks or corrupted firmware. It's designed to automatically protect and repair the compromised BIOS code to safeguard PCs from intrusions and attacks. The ASUS Defender controller uses hardware-based Root-of-Trust (ROT) with immutable and non-bypassable boot firmware to form a chain of trust (COT) with integrity for a secure computing system.With ASUS self-recovering BIOSThe user simply needs to reboot the system and ASUS Self-recovering BIOS will restore the latest BIOS update.
Expansion Slots1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 2 x PCIe 3.0 x1 ¦ 1 x M.2 socket (Key E)
Storage InterfacesSATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 5
RAID FeaturesIntel Rapid Storage Technology
Interfaces1 x HDMI ¦ 2 x DisplayPort ¦ 1 x LAN (Gigabit Ethernet) ¦ 4 x USB 3.2 Gen 2 ¦ 2 x USB 2.0 ¦ 1 x PS/2 keyboard ¦ 1 x PS/2 mouse ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack
Internal Interfaces4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen 1 - header ¦ 1 x audio - header ¦ 2 x serial - header ¦ 1 x parallel - header ¦ 1 x speaker - header
Power Connectors24-pin main power connector, 8-pin ATX12V connector
Features
Sleep / Wake UpWake on LAN (WOL), wake on PME
Hardware FeaturesJack retasking, ASUS EZ DIY, audio jack detect technology, Intel Turbo Boost Technology 2.0, Preboot eXecution Environment (PXE), overcurrent protection, LANGuard, Moistureproof PCB, Intel Optane Memory Ready, Intel Turbo Boost Max Technology 3.0, ASUS Self Recovering BIOS, ASUS Event Log, ASUS Commercial BIOS kit, TPM IC Onboard, ASUS OptiMem II, ASUS Control Center Express (ACC Express), Q-LED Core, ASUS Boot Defender
