General
Product Type

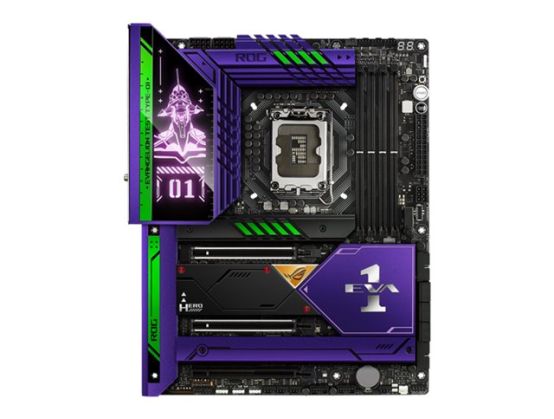

Motherboard - ATX
Chipset Type
Intel Z690
Processor Socket
LGA1700 Socket
Max Processors Qty
1
Compatible Processors
(supports 12th Generation Intel Core / Pentium Gold / Celeron)
Supported RAM
Max Size
128 GB
Technology
DDR5
Bus Clock
5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture
Audio
Type
HD Audio (8-channel)
Audio Codec
SupremeFX (ALC4082)
Compliant Standards
High Definition Audio, DTS Sound Unbound
LAN
Network Interfaces
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Expansion / Connectivity
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 5.0 x16 (dual x8 mode; single card: x16 mode) ¦ 1 x PCIe 4.0 x16 (x4 mode)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 5 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5 ¦ PCIe 3.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5 ¦ SATA-600 -connectors: 2 x 7pin Serial ATA ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5
RAID Features
Intel Rapid Storage Technology
Interfaces
2 x Thunderbolt 4/USB4 ¦ 1 x HDMI ¦ 6 x USB 3.2 Gen 2 ¦ 1 x USB-C Gen2 ¦ 2 x USB 2.0 ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x TOSLINK ¦ 1 x audio line-in - mini-jack
Internal Interfaces
4 x USB 2.0 - header ¦ 1 x USB-C Gen 2x2 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x audio - header
Power Connectors
24-pin main power connector, 6-pin ATX12V connector, 2 x 8-pin ATX12V connectors
Features
BIOS Type
AMI
BIOS Features
BIOS FlashBack, UEFI BIOS, ASUS EZ Flash 3, MemTest86
Sleep / Wake Up
Wake on LAN (WOL), wake on PME
Hardware Features
Jack retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, ASUS Extreme Engine Digi+, ASUS Q-Connector, audio jack detect technology, ASUS EPU (Energy Processing Unit), Intel Turbo Boost Technology 2.0, ASUS TPU (TurboV Processing Unit), ASUS ROG Extreme OC, Q-Code, SupremeFX Shielding technology, ASUS DIGI+ Power Control, Gold Plated Audio Hardware, Preboot eXecution Environment (PXE), Clear CMOS Button, LANGuard, ASUS Fan Xpert 4, ASUS SafeSlot, Sonic Radar III, Sonic Studio III, M.2 heatsink, pre-mounted I/O shield, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, Armoury Crate, ESS 9018 SABRE HiFi DAC, FlexKey button, ASUS ProCool II, GameFirst VI, ASUS HYDRANODE, 20+1 Phase Power Design, M.2 Q-Latch, SafeDIMM
Miscellaneous
Included Accessories
ROG fan stickers, 2 x M.2 screws, RGB (RGBW) LED strip extension cable, ROG thank you card, Q-Connector, ROG key chain, 1 x M.2 rubber package, USB drive, ARGB LED strip extension cable, graphics card holder, ROG HYPER M.2 CARD, 2 x M.2 Q-Latch
Cables Included
4 x Serial ATA cable
Software Included
Drivers & Utilities, ROG CPU-Z, ASUS AI Suite III, ASUS Turbo App, WinRAR, Sonic Studio Virtual Mixer, BullGuard Internet Security (1 year licence), ROG GameFirst VI, ASUS AURA Creator, AIDA64 Extreme (1 year licence), MyAsus
Width
30.5 cm
Depth
24.4 cm
