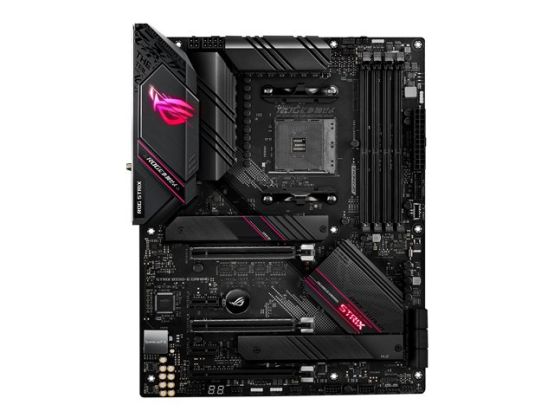

With robust power delivery and effective cooling, ROG STRIX B550-E GAMING is equipped to handle demanding CPUs. Boasting futuristic aesthetics, ROG STRIX B550-E GAMING gives you a head start on your dream build.
Network Interfaces2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.1
Expansion / Connectivity
Expansion Slots1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 4.0 x16 (dual x8 mode; single card: x16 mode) ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 2 x PCIe 3.0 x1
Storage InterfacesSATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2
Interfaces1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x USB-C Gen2 ¦ 2 x USB 3.2 Gen 2 ¦ 1 x USB-C ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 4 x USB 2.0 ¦ 1 x DisplayPort ¦ 1 x HDMI
Internal Interfaces4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen2 - header ¦ 1 x Thunderbolt - header
Power Connectors4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
Features
BIOS TypeAMI
BIOS FeaturesBIOS FlashBack, UEFI BIOS
Sleep / Wake UpWake on LAN (WOL), wake on PME
Hardware FeaturesJack retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), NVIDIA 2-way SLI Technology Support, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, Q-Code, SupremeFX Shielding technology, AMD 3-way CrossFireX technology support, Preboot eXecution Environment (PXE), LANGuard, ASUS Fan Xpert 4, ASUS SafeSlot, Sonic Radar III, Sonic Studio III, ASUS ProCool, pre-mounted I/O shield, ASUS Aura Sync, ASUS OptiMem II, Armoury Crate, FlexKey button, GameFirst VI
Miscellaneous
Included AccessoriesExternal antenna, cable ties, 1 x M.2 screw, ROG fan stickers, RGB (RGBW) LED strip extension cable, ROG thank you card, RGB Addressable LED extension cable, rubber pad, ROG key chain
Cables Included4 x Serial ATA cable ¦ 1 x USB-C to mini-phone 3.5 mm cable
Software IncludedROG CPU-Z, ASUS AI Suite III, ASUS EZ Update, ASUS Turbo App, Overwolf, ASUS EZ Flash 3, Antivirus, WinRAR, ASUS ROG RAMCache III, Sonic Studio Virtual Mixer
