General
Product Type

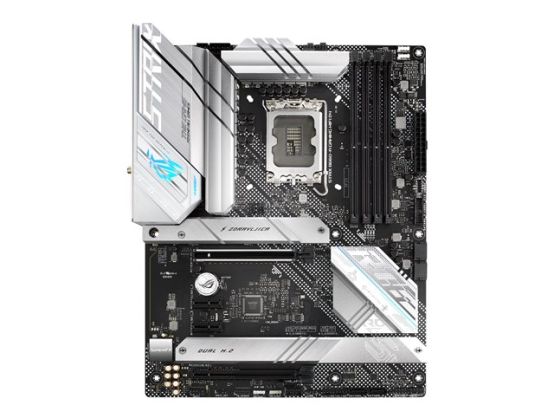

Motherboard - ATX
Chipset Type
Intel B660
Processor Socket
LGA1700 Socket
Max Processors Qty
1
Compatible Processors
(supports 12th Generation Intel Core / Pentium Gold / Celeron)
Supported RAM
Max Size
128 GB
Technology
DDR4
Bus Clock
2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 2933 MHz, 3000 MHz, 3200 MHz, 3333 MHz (O.C.), 3400 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 4000 MHz (O.C.), 4266 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 5000 MHz (O.C.), 5333 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Audio
Type
HD Audio (8-channel)
Audio Codec
SupremeFX (ALC4080)
Compliant Standards
High Definition Audio, DTS Sound Unbound
LAN
Network Interfaces
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Expansion / Connectivity
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 2 x PCIe 3.0 x1
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 3 x M.2
RAID Features
Intel Rapid Storage Technology
Interfaces
1 x HDMI ¦ 1 x DisplayPort ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x USB-C Gen2x2 ¦ 4 x USB 2.0 ¦ 1 x USB 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 1 ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x USB-C Gen1
Internal Interfaces
3 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen2 - header ¦ 1 x audio - header ¦ 1 x Thunderbolt - header ¦ 1 x SPDIF out - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector
Features
BIOS Type
AMI
BIOS Features
UEFI BIOS, ASUS EZ Flash 3, MemTest86
Sleep / Wake Up
Wake on LAN (WOL), wake on PME
Hardware Features
Intel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, ASUS OptiMem II, Intel Optane Memory Ready, LANGuard, audio jack detect technology, jack retasking, SupremeFX Shielding technology, Savitech SV3H712 amplifier, ASUS Extreme Engine Digi+, ASUS Q-Design, Q-DIMM, Q-LED, M.2 Q-Latch, Q-Slot, M.2 heatsink, ASUS EZ DIY, CPU Socket lever protector, pre-mounted I/O shield, ASUS SafeSlot, ASUS SafeDIMM, ASUS Aura Sync, GameFirst VI, Sonic Studio III, Sonic Radar III, Armoury Crate, ASUS Fan Xpert 4, ASUS TurboV EVO, ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, CrashFree BIOS 3, FlexKey button, Preboot eXecution Environment (PXE), Windows 11 compatible, 12+1 Phase Power Design, DIY Friendly Design, ASUS ProCool, 6 Layer PCB
Miscellaneous
Included Accessories
ASUS Wi-Fi moving aerial, cable ties, 1 x M.2 rubber package, M.2 Q-Latch, ROG key chain, STRIX stickers, ROG thank you card
Cables Included
4 x Serial ATA cable
Software Included
Drivers & Utilities, ROG GameFirst VI, ROG CPU-Z, Sonic Studio Virtual Mixer, Sonic Suite Companion, Antivirus, AIDA64 Extreme (60 days trial), ASUS AURA Creator, ASUS AI Suite III, ASUS Turbo App, MyAsus, WinRAR, ASUS EZ Flash 3
Width
30.5 cm
Depth
24.4 cm
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
