General
Product Type

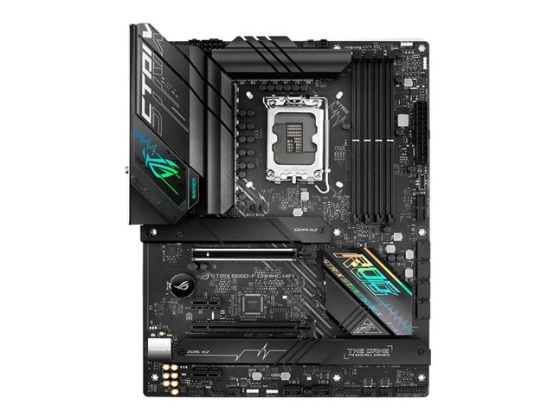

Motherboard - ATX
Chipset Type
Intel B660
Processor Socket
LGA1700 Socket
Max Processors Qty
1
Compatible Processors
(supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)
Supported RAM
Max Size
128 GB
Technology
DDR5
Bus Clock
5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Audio
Type
HD Audio (8-channel)
Audio Codec
SupremeFX (ALC4080)
Compliant Standards
High Definition Audio, DTS Sound Unbound
LAN
Network Controller
Intel I225-V
Network Interfaces
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Expansion / Connectivity
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode (x2 mode if PCI Express 3.0 x1 slot is occupied)) ¦ 2 x PCIe 3.0 x1 ¦ 2 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) ¦ 1 x M.2 socket (2242/2260/2280 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2 ¦ PCIe 3.0 -connectors: 1 x M.2
RAID Features
Intel Rapid Storage Technology
Interfaces
1 x HDMI ¦ 1 x DisplayPort ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x USB-C 3.2 Gen2x2 ¦ 1 x USB 3.2 Gen 2 ¦ 1 x USB-C 3.2 Gen 1 ¦ 4 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 2 x aerial
Internal Interfaces
4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 2 - header ¦ 1 x audio - header ¦ 1 x Thunderbolt - header ¦ 1 x SPDIF out - header ¦ 1 x SPI - header
Power Connectors
4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
Features
BIOS Type
AMI
BIOS Features
BIOS FlashBack, UEFI BIOS, ASUS EZ Flash 3, MemTest86
Sleep / Wake Up
Wake on LAN (WOL), wake on PME
Hardware Features
Jack retasking, ASUS Q-Design, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, ASUS Extreme Engine Digi+, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, SupremeFX Shielding technology, Preboot eXecution Environment (PXE), Clear CMOS Button, LANGuard, 6 Layer PCB, ASUS SafeSlot, Intel Optane Memory Ready, ASUS SafeDIMM, M.2 heatsink, ASUS ProCool, Water Pump Header, pre-mounted I/O shield, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, ASUS OptiMem II, DIY Friendly Design, 16+1 Phase Power Design, Savitech SV3H712 amplifier, 5K Black Metallic Capacitors, BIOS FlashBack button, BIOS FlashBack LED, ASUS Enhanced Memory Profile (AEMP)
Miscellaneous
Included Accessories
Cable ties, STRIX stickers, ROG thank you card, ROG key chain, ASUS Wi-Fi moving aerial, 1 x M.2 rubber package, M.2 Q-Latch
Cables Included
4 x Serial ATA cable
Software Included
ROG CPU-Z, ASUS AI Suite III, ROG GameFirst IV, Antivirus, WinRAR, Sonic Studio Virtual Mixer, AIDA64 Extreme (60 days trial), ASUS AURA Creator, Sonic Suite Companion, MyAsus, Armoury Crate, Sonic Studio III, Sonic Radar III, ASUS Fan Xpert 4
Compliant Standards
VCCI Class B ITE, JATE, KC, FCC Part 15 Class B, DisplayPort 1.4, EU RoHS
Width
30.5 cm
Depth
24.4 cm
