General
Product Type

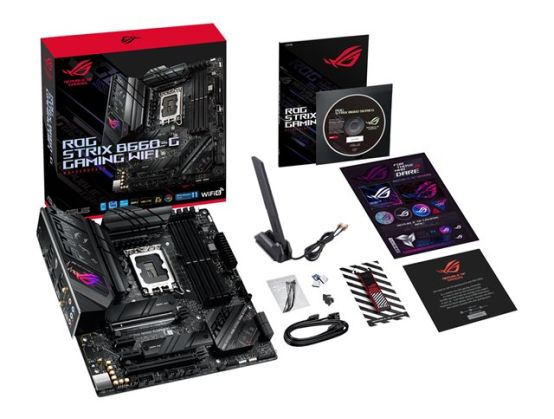

Motherboard - micro ATX
Chipset Type
Intel B660
Processor Socket
LGA1700 Socket
Max Processors Qty
1
Compatible Processors
(supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron)
Supported RAM
Max Size
128 GB
Technology
DDR5
Bus Clock
4800 MHz (O.C.), 5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Audio
Type
HD Audio (8-channel)
Audio Codec
SupremeFX (S1220A)
Compliant Standards
High Definition Audio, DTS Sound Unbound
LAN
Network Interfaces
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Expansion / Connectivity
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 2 x PCIe 4.0 x1 ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA ¦ PCIe 4.0 -connectors: 2 x M.2
RAID Features
Intel Rapid Storage Technology
Interfaces
1 x HDMI ¦ 1 x DisplayPort ¦ 2 x aerial ¦ 1 x USB-C 3.2 Gen2x2 ¦ 1 x USB 3.2 Gen 2 ¦ 1 x USB-C 3.2 Gen 1 ¦ 2 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack
Internal Interfaces
4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 2 - header ¦ 1 x audio - header ¦ 1 x serial - header ¦ 1 x SPDIF out - header ¦ 1 x SPI - header ¦ 1 x Thunderbolt - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
Features
BIOS Type
AMI
BIOS Features
UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode
Sleep / Wake Up
Wake on LAN (WOL), wake on PME
Hardware Features
ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, ASUS Extreme Engine Digi+, CrashFree BIOS 3, ASUS EPU (Energy Processing Unit), Intel Turbo Boost Technology 2.0, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, 6 Layer PCB, Lighting Control, ASUS SafeSlot, ASUS SafeDIMM, M.2 heatsink, pre-mounted I/O shield, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, ASUS OptiMem II, 12+1 Phase Power Design, M.2 Q-Latch, 5K Black Metallic Capacitors, CPU Socket lever protector, BIOS FlashBack button, BIOS FlashBack LED, ASUS Enhanced Memory Profile (AEMP)
Miscellaneous
Included Accessories
Cable ties, ROG thank you card, ROG key chain, ASUS Wi-Fi moving aerial, 1 x M.2 rubber package, M.2 Q-Latch, ROG stickers
Cables Included
2 x Serial ATA cable
Software Included
ASUS AI Suite III, ROG GameFirst IV, Antivirus, WinRAR, Sonic Studio Virtual Mixer, AIDA64 Extreme (60 days trial), MemTest86, ASUS AURA Creator, Sonic Suite Companion, MyAsus, Armoury Crate, Sonic Studio III, Sonic Radar III, ASUS Fan Xpert 4
Compliant Standards
DisplayPort 1.4
Width
24.4 cm
Depth
24.4 cm
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
