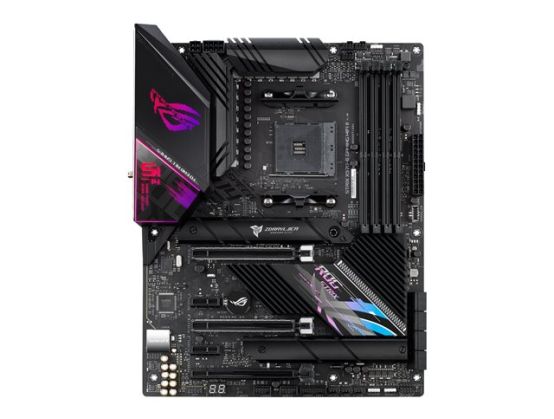

The ROG Strix X570-E Gaming WiFi II motherboard delivers the quintessential ROG experience. It is bristling with features such as new passive chipset cooling, WiFi 6E, plus improved overclocking and audio performance, along with DIY-friendly conveniences to help seasoned builders and beginners alike. With futuristic aesthetics complemented by onboard RGB illumination, the Strix X570-E Gaming WiFi II motherboard has everything you need to build a formidable gaming rig that rises above the rest.
Network InterfacesGigabit Ethernet, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Expansion / Connectivity
Expansion Slots1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 4.0 x16 (dual x8 mode; single card: x16 mode) ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 2 x PCIe 4.0 x1
Storage InterfacesSATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 4.0 -connectors: 2 x M.2
Interfaces1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x TOSLINK ¦ 7 x USB 3.2 Gen 2 ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x USB-C Gen2 ¦ 1 x DisplayPort ¦ 1 x HDMI
Internal Interfaces4 x USB 2.0 - header ¦ 1 x USB-C Gen2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x speaker - header
Power Connectors4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
Features
BIOS TypeAMI
BIOS FeaturesBIOS FlashBack, UEFI BIOS, ASUS EZ Flash 3
Sleep / Wake UpWake on LAN (WOL)
Hardware FeaturesJack retasking, ASUS Q-Design, GameFirst, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, ASUS Extreme Engine Digi+, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS TPU (TurboV Processing Unit), Q-Code, SupremeFX Shielding technology, Preboot eXecution Environment (PXE), LANGuard, ASUS SafeSlot, Sonic Radar III, Sonic Studio III, pre-mounted I/O shield, ASUS Aura Sync, Armoury Crate, ASUS ProCool II, M.2 Q-Latch, 5K Black Metallic Capacitors
Miscellaneous
Included AccessoriesCable ties, thermistor cable, STRIX stickers, ROG thank you card, ROG key chain, ASUS Wi-Fi moving aerial, 1 x M.2 rubber package, M.2 Q-Latch
Cables Included4 x Serial ATA cable
Software IncludedDrivers & Utilities, ROG CPU-Z, ASUS AI Suite III, ASUS Turbo App, Overwolf, DAEMON Tools, Antivirus, WinRAR, ASUS ROG RAMCache III, ROG GameFirst V, Sonic Studio Virtual Mixer, AIDA64 Extreme (60 days trial), ASUS AURA Creator
