ASUS

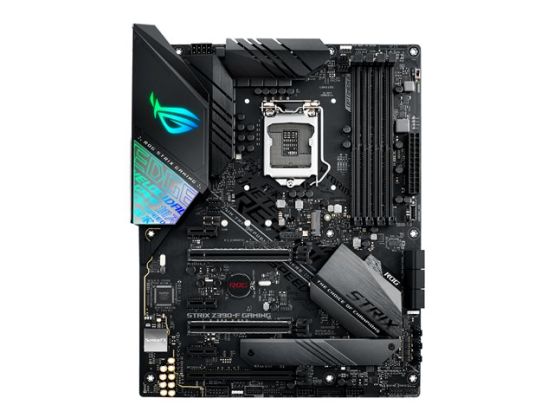

ASUS ROG STRIX Z390-F GAMING - Motherboard - ATX - LGA1151 Socket - Z390 Chipset - USB 3.1 Gen 1, USB-C Gen2, USB 3.1 Gen 2, USB-C Gen1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)

Name: ASUS ROG STRIX Z390-F GAMING - Motherboard - ATX - LGA1151 Socket - Z390 Chipset - USB 3.1 Gen 1, USB-C Gen2, USB 3.1 Gen 2, USB-C Gen1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Brand: ASUS
SKU: 1TCPTMOT-004243
Price: 214.37 GBP
Availability: OutOfStock

SKU

1TCPTMOT-004243

Manufacture#: ROG STRIX Z390-F GAMING

£178.64

£214.37 inc VAT

Checking delivery…

Product details

Motherboard
ATX
LGA1151 Socket
Z390 Chipset

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

ASUS ROG STRIX Z390-F GAMING
Motherboard
ATX
LGA1151 Socket
Z390 Chipset
USB 3.1 Gen 1, USB-C Gen2, USB 3.1 Gen 2, USB-C Gen1
Gigabit LAN
onboard graphics (CPU required)
HD Audio (8-channel)

Overview

With upgraded power delivery to fuel CPUs with more cores, plus support for faster memory and storage, ROG STRIX Z390 provides all the essentials you need to harness the full potential of components in your build for superior gaming performance.

Specification

Product Description ASUS ROG STRIX Z390-F GAMING - motherboard - ATX - LGA1151 Socket - Z390

Product Type Motherboard - ATX

Chipset Type Intel Z390

Processor Socket 1 x LGA1151 Socket

Compatible Processors Celeron, Core i5, Core i3, Core i7, Core i9, Pentium Gold (supports 9th and 8th Generation Intel Core / Pentium Gold / Celeron)

Max RAM Size 64 GB

RAM Supported 4 DIMM slots - DDR4, non-ECC, unbuffered

Storage Ports 6 x SATA-600 (RAID), 2 x M.2

USB / FireWire Ports 1 x USB-C Gen 2 + 3 x USB 3.1 Gen 2 + 2 x USB 3.1 Gen 1 + 2 x USB 2.0 + (1 x USB-C Gen 1 + 2 x USB 3.1 Gen 1 + 4 x USB 2.0 via headers)

Audio HD Audio (8-channel)

LAN Gigabit Ethernet

General

Product Type Motherboard - ATX

Chipset Type Intel Z390

Processor Socket LGA1151 Socket

Max Processors Qty 1

Compatible Processors Celeron, Core i5, Core i3, Core i7, Core i9, Pentium Gold (supports 9th and 8th Generation Intel Core / Pentium Gold / Celeron)

Supported RAM

Max Size 64 GB

Technology DDR4

Bus Clock 2400 MHz, 2133 MHz, 2666 MHz, 2800 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4266 MHz (O.C.)

Supported RAM Integrity Check Non-ECC

Registered or Buffered Unbuffered

Features Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)

Audio

Type HD Audio (8-channel)

Audio Codec SupremeFX (S1220A)

Compliant Standards High Definition Audio

LAN

Network Controller Intel I219V

Network Interfaces Gigabit Ethernet

Expansion / Connectivity

Expansion Slots 1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 3.0 x16 (dual x8 mode; single card: x16 mode) ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 3 x PCIe 3.0 x1

Storage Interfaces SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 ¦ PCIe 3.0 -connectors: 1 x M.2

Interfaces 1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x TOSLINK ¦ 1 x DisplayPort ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 2 x USB 3.1 Gen 1 ¦ 3 x USB 3.1 Gen 2 ¦ 1 x USB-C Gen2 ¦ 2 x USB 2.0

Internal Interfaces 4 x USB 2.0 - header ¦ 2 x USB 3.1 Gen 1 - header ¦ 1 x serial - header ¦ 1 x audio - header ¦ 1 x USB-C Gen 1 - header

Power Connectors 24-pin main power connector, 8-pin ATX12V connector

Features

BIOS Type AMI

BIOS Features UEFI BIOS, ASUS EZ Flash 3, DMI 3.0 support, ACPI 6.1 support, SMBIOS 3.1 support

Sleep / Wake Up Wake on LAN (WOL)

Hardware Features Jack retasking, ASUS Q-Design, GameFirst, ESD Guards, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), NVIDIA 2-way SLI Technology Support, Intel Turbo Boost Technology 2.0, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, Intel Clear Video HD Technology, SupremeFX Shielding technology, AMD 3-way CrossFireX technology support, Intel InTru 3D Technology, Intel Insider, Intel Quick Sync Video, ASUS Enhanced DRAM Overcurrent Protection, Preboot eXecution Environment (PXE), Dual Intelligent Processors 5, LANGuard, ASUS PRO Clock Technology, AURA RGB Lighting Control, ASUS Fan Xpert 4, ASUS SafeSlot, 3D printing friendly, Intel Optane Memory Ready, Sonic Radar III, Sonic Studio III, M.2 heatsink, ASUS ProCool, pre-mounted I/O shield, Sonic Studio Link, ASUS Aura Sync, ASUS OptiMem II, MemOK! II, Armoury Crate

Miscellaneous

Included Accessories Cable ties, ROG Door Hanger, 1 x M.2 screw, thermistor cable, RGB (RGBW) LED strip extension cable, MOS cooling kit, STRIX stickers, RGB Addressable LED extension cable

Cables Included 4 x Serial ATA cable ¦ 1 x SLI bridge

Software Included ASUS AI Charger, ROG CPU-Z, ASUS AI Suite III, ASUS EZ Flash 3, ASUS ROG RAMCache III, ROG GameFirst V

Compliant Standards Plug and Play

Width 30.5 cm

Depth 24.4 cm
