General
Product Type

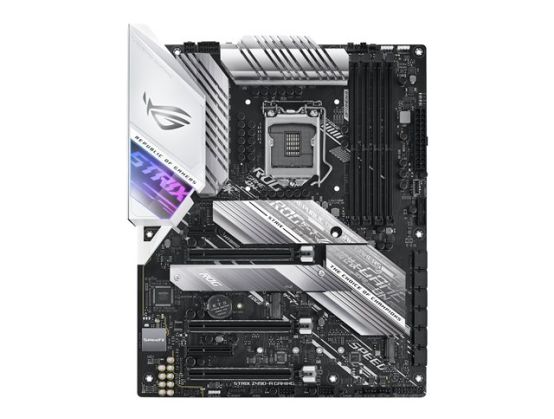

Motherboard - ATX
Chipset Type
Intel Z490
Processor Socket
LGA1200 Socket
Max Processors Qty
1
Compatible Processors
(supports 10th Generation Intel Core / Pentium Gold / Celeron)
Supported RAM
Max Size
128 GB
Technology
DDR4
Bus Clock
2400 MHz, 2133 MHz, 2666 MHz, 2800 MHz (O.C.), 2933 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4500 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture
Audio
Type
HD Audio (8-channel)
Audio Codec
SupremeFX (S1220A)
Compliant Standards
High Definition Audio, DTS Sound Unbound
LAN
Network Controller
Intel I225-V
Network Interfaces
2.5 Gigabit Ethernet
Expansion / Connectivity
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 3 x PCIe 3.0 x16 (x16, x8+x4+x4 modes) ¦ 1 x PCIe 3.0 x4 (x2 mode) ¦ 1 x PCIe 3.0 x1 ¦ 1 x M.2 socket (Key E)
Storage Interfaces
SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 ¦ PCIe 3.0 -connectors: 1 x M.2
Interfaces
1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x TOSLINK ¦ 4 x USB 3.2 Gen 1 ¦ 1 x USB 3.2 Gen 2 ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x USB-C Gen2 ¦ 1 x DisplayPort ¦ 1 x HDMI ¦ 2 x USB 2.0
Internal Interfaces
4 x USB 2.0 - header ¦ 1 x USB-C Gen 1 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x Thunderbolt - header ¦ 1 x audio - header
Power Connectors
4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
Features
BIOS Type
AMI
BIOS Features
BIOS FlashBack, UEFI BIOS, ASUS EZ Flash 3
Sleep / Wake Up
Wake on LAN (WOL), wake on PME
Hardware Features
Jack retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), Intel Turbo Boost Technology 2.0, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, SupremeFX Shielding technology, AMD CrossFireX technology support, Preboot eXecution Environment (PXE), LANGuard, ASUS Fan Xpert 4, ASUS SafeSlot, Sonic Radar III, Sonic Studio III, pre-mounted I/O shield, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, ASUS OptiMem II, Armoury Crate, FlexKey button, ASUS ProCool II, GameFirst VI
Miscellaneous
Included Accessories
Cable ties, thermistor cable, ROG fan stickers, 2 x M.2 screws, RGB (RGBW) LED strip extension cable, ASUS fan holder, ROG thank you card, RGB Addressable LED extension cable, rubber pad, ROG key chain
Cables Included
4 x Serial ATA cable
Software Included
Drivers & Utilities, ROG CPU-Z, ASUS AI Suite III, ASUS EZ Update, ASUS Turbo App, Overwolf, ASUS EZ Flash 3, Antivirus, WinRAR, ASUS ROG RAMCache III, Sonic Studio Virtual Mixer
Compliant Standards
DisplayPort 1.4
Width
30.5 cm
Depth
24.4 cm
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
