General
Product Type

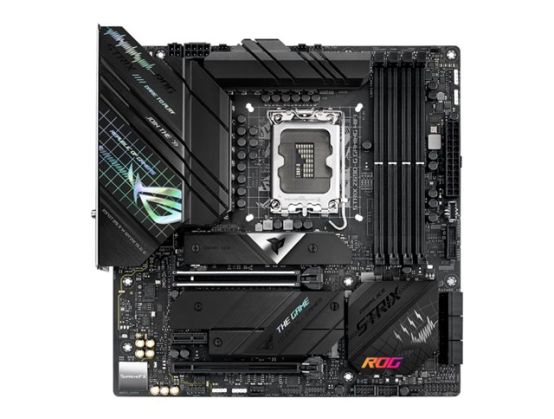

Motherboard - micro ATX
Chipset Type
Intel Z690
Processor Socket
LGA1700 Socket
Max Processors Qty
1
Compatible Processors
(supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)
Supported RAM
Max Size
128 GB
Technology
DDR5
Bus Clock
4800 MHz, 5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Audio
Type
HD Audio (8-channel)
Audio Codec
SupremeFX (ALC4080)
Compliant Standards
High Definition Audio, DTS Sound Unbound
LAN
Network Interfaces
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.2
Expansion / Connectivity
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 3.0 x1 ¦ 3 x M.2 socket (2242/2260/2280 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 5 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5 ¦ SATA-600 -connectors: 2 x 7pin Serial ATA
RAID Features
Intel Rapid Storage Technology
Interfaces
1 x DisplayPort ¦ 1 x HDMI ¦ 1 x USB-C 3.2 Gen2x2 ¦ 2 x USB 3.2 Gen 2 ¦ 1 x USB-C 3.2 Gen 2 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x SPDIF out ¦ 2 x USB 2.0 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 4 x USB 3.2 Gen 1 ¦ 2 x aerial
Internal Interfaces
4 x USB 2.0 - header ¦ 1 x USB-C Gen 2x2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x Thunderbolt - header ¦ 1 x SPI - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector
Features
BIOS Type
AMI
BIOS Features
UEFI BIOS, ASUS EZ Flash 3, BIOS FlashBack, MemTest86
Sleep / Wake Up
Wake on LAN (WOL), wake on PME
Hardware Features
Preboot eXecution Environment (PXE), Intel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, ASUS OptiMem II, LANGuard, audio jack detect technology, jack retasking, SupremeFX Shielding technology, Savitech SV3H712 amplifier, Gold Plated Audio Hardware, ASUS Extreme Engine Digi+, ASUS Q-Design, M.2 Q-Latch, Q-DIMM, Q-LED, Q-Slot, M.2 heatsink, ASUS EZ DIY, Clear CMOS Button, ASUS ProCool II, pre-mounted I/O shield, ASUS SafeSlot, SafeDIMM, ASUS Aura Sync, ASUS Fan Xpert 4, ASUS TPU (TurboV Processing Unit), ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, CrashFree BIOS 3, FlexKey button, 14+1 DrMOS power stages, Windows 11 compatible
Miscellaneous
Included Accessories
ASUS Wi-Fi moving aerial, cable ties, 1 x M.2 rubber package, M.2 Q-Latch, ROG key chain, STRIX stickers, ROG thank you card
Cables Included
4 x Serial ATA cable
Software Included
Drivers & Utilities, ROG GameFirst VI, ROG CPU-Z, Sonic Studio Virtual Mixer, Antivirus, AIDA64 Extreme (60 days trial), ASUS AURA Creator, ASUS AI Suite III, ASUS Turbo App, WinRAR, MyAsus, Sonic Studio III, Sonic Suite Companion, Sonic Radar III, Armoury Crate, ASUS Fan Xpert 4, Adobe Creative Cloud (1 month trial)
Width
24.4 cm
Depth
24.4 cm
