USB 3.1 Gen 2, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB-C 3.2 Gen 1
2.5 Gigabit LAN
onboard graphics (CPU required)
HD Audio (8-channel)
Overview

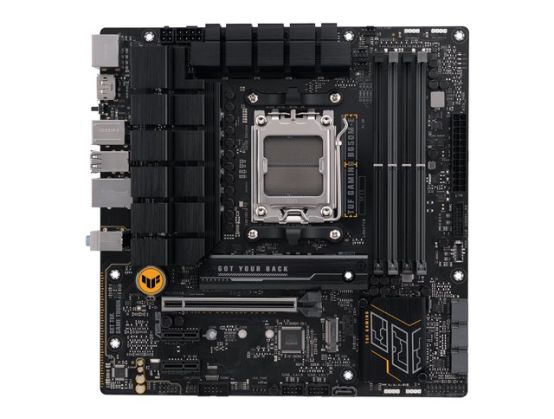

The ASUS TUF GAMING B650M-E motherboard brings together performance, connectivity, and durability to meet the demands of gamers and PC enthusiasts. With support for AMD Ryzen processors and DDR5 memory, it offers a foundation for building a powerful system. The motherboard features a robust power design and advanced cooling options to ensure stable performance under heavy loads. Connectivity is a breeze, with multiple USB, HDMI, and DisplayPort options, catering to all your peripheral needs. Additionally, ASUS's commitment to quality is evident in the durable construction and TUF components, making the TUF GAMING B650M-E a reliable choice for your next build.
USB / FireWire Ports1 x USB-C 3.2 Gen 2 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)
Expansion Slots1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 2 x PCIe 4.0 x1 ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot)
Storage InterfacesSATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10
Interfaces1 x HDMI ¦ 2 x DisplayPort ¦ 1 x USB-C 3.2 Gen 2 ¦ 1 x USB 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x PS/2 keyboard / mouse ¦ 1 x LAN (2.5Gigabit Ethernet)
Internal Interfaces1 x USB-C 3.2 Gen 1 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x serial - header
Power Connectors4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
Features
BIOS TypeAMI
BIOS FeaturesUEFI BIOS, ASUS EZ Flash 3
Hardware FeaturesJack retasking, ASUS Q-Design, 12+2 Phase Power Design, ESD Guards, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS DIGI+ VRM, ASUS Stainless Steel Back I/O, TUF LANGuard, TUF Components, overvoltage protection, ASUS SafeDIMM, M.2 heatsink, ASUS ProCool, Water Pump Header, pre-mounted I/O shield, ASUS TUF Protection, ASUS Aura Sync, ASUS OptiMem II, ASUS SafeSlot Core+, M.2 Q-Latch, VRM heatsink design, BIOS FlashBack button, BIOS FlashBack LED, 60A Power Stage
Miscellaneous
Included AccessoriesIO shield, 1 x M.2 rubber package, M.2 screw package, TUF certification card, TUF GAMING sticker
Cables Included2 x Serial ATA cable
Software IncludedASUS AI Suite III, PC Cleaner, WinRAR, ASUS TUF GAMING CPU-Z, ASUS AURA Creator, Armoury Crate, ASUS Fan Xpert 2+, Norton 360 for Gamers (60 days trial)
Compliant StandardsVCCI Class B ITE, JATE, WEEE, FCC Part 15 Class B, DisplayPort 1.4, EU RoHS, EU REACH
