USB-C 3.2 Gen 2x2, USB 3.1 Gen 2, USB 3.2 Gen 2, USB-C 3.2 Gen 1
2.5 Gigabit LAN, Bluetooth
onboard graphics (CPU required)
HD Audio (8-channel)
Overview

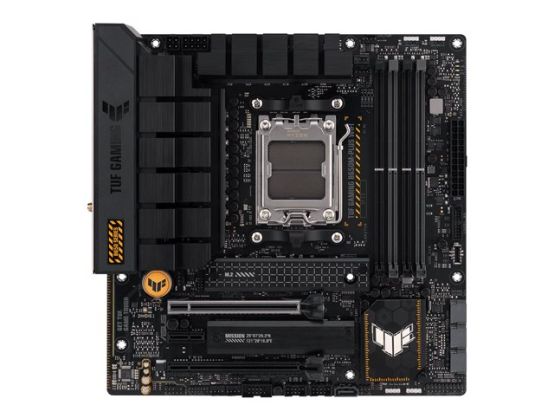

ASUS TUF Gaming B650M-Plus WIFI takes all the essential elements of the advanced processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming.
USB / FireWire Ports1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 2 + 1 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)
Network Interfaces2.5 Gigabit Ethernet, Bluetooth 5.2
Expansion / Connectivity
Expansion Slots1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 4.0 x1 ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot)
Storage InterfacesSATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10
Interfaces1 x HDMI ¦ 1 x DisplayPort ¦ 1 x USB-C 3.2 Gen2x2 ¦ 2 x USB 3.2 Gen 2 ¦ 1 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 2 x aerial ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x LAN (2.5Gigabit Ethernet)
Internal Interfaces1 x USB-C 3.2 Gen 1 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x Thunderbolt - header ¦ 1 x serial - header
Power Connectors24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector
Features
BIOS TypeAMI
BIOS FeaturesUEFI BIOS, ASUS EZ Flash 3
Hardware FeaturesASUS OptiMem II, jack retasking, audio jack detect technology, TUF LANGuard, BIOS FlashBack button, Water Pump Header, ASUS TUF Protection, ASUS DIGI+ VRM, ESD Guards, overvoltage protection, ASUS SafeSlot Core+, ASUS Stainless Steel Back I/O, ASUS Q-Design, M.2 Q-Latch, Q-DIMM, Q-LED, Q-Slot, M.2 heatsink, VRM heatsink design, ASUS EZ DIY, BIOS FlashBack LED, ASUS ProCool, pre-mounted I/O shield, ASUS SafeDIMM, ASUS Aura Sync, ASUS TurboV EVO, CrashFree BIOS 3, 12+2 Phase Power Design, 60A Power Stage, TUF Components
Miscellaneous
Included AccessoriesASUS Wi-Fi moving aerial, 2 x M.2 rubber package, M.2 screw package
Cables Included2 x Serial ATA cable
Software IncludedArmoury Crate, ASUS AURA Creator, ASUS Fan Xpert 2+, ASUS AI Suite III, PC Cleaner, ASUS TUF GAMING CPU-Z, MyAsus, Norton AntiVirus (Trial), WinRAR
Compliant StandardsDisplayPort 1.4, FCC Part 15 Class B, VCCI Class B ITE, JATE, EU REACH, EU RoHS, WEEE
