USB-C Gen 2x2, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen1
2.5 Gigabit LAN, Wi-Fi 6, Bluetooth
onboard graphics (CPU required)
HD Audio (8-channel)
Overview
ASUS TUF GAMING B660M-PLUS WIFI D4 takes all the essential elements of the latest Intel processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard offers rock-solid and stable performance for marathon gaming. Aesthetically, TUF GAMING B660M-PLUS WIFI D4 sports the TUF Gaming logo and incorporates simple geometric design elements to reflect the dependability and stability that defines the TUF Gaming series.
USB / FireWire Ports1 x USB-C Gen 2x2 + 4 x USB 3.2 Gen 2 + 1 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)
AudioHD Audio (8-channel)
LAN2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Network Interfaces2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Expansion / Connectivity
Expansion Slots1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 1 x PCIe 4.0 x1
Storage InterfacesSATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2
RAID FeaturesIntel Rapid Storage Technology
Interfaces1 x HDMI ¦ 1 x DisplayPort ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x USB-C Gen2x2 ¦ 2 x USB 2.0 ¦ 4 x USB 3.2 Gen 2 ¦ 1 x USB 3.2 Gen 1 ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x TOSLINK
Internal Interfaces4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen 1 - header ¦ 1 x audio - header ¦ 1 x Thunderbolt - header ¦ 1 x serial - header
Power Connectors24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector
Features
BIOS TypeAMI
BIOS FeaturesASUS EZ Flash 3, UEFI BIOS
Sleep / Wake UpWake on LAN (WOL), wake on PME
Hardware FeaturesIntel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, ASUS OptiMem II, Intel Optane Memory Ready, LANGuard, audio jack detect technology, jack retasking, ASUS TUF Protection, ASUS DIGI+ VRM, ASUS Enhanced DRAM Overcurrent Protection, ESD Guards, overvoltage protection, ASUS SafeSlot, ASUS Stainless Steel Back I/O, ASUS Q-Design, Q-DIMM, Q-LED, M.2 Q-Latch, Q-Slot, M.2 heatsink, ASUS EZ DIY, CPU Socket lever protector, ASUS ProCool, pre-mounted I/O shield, ASUS SafeDIMM, ASUS Aura Sync, Armoury Crate, ASUS Fan Xpert 2+, ASUS TurboV EVO, ASUS EPU (Energy Processing Unit), CrashFree BIOS 3, Preboot eXecution Environment (PXE), 10+1 DrMOS power stages, Windows 11 compatible
Miscellaneous

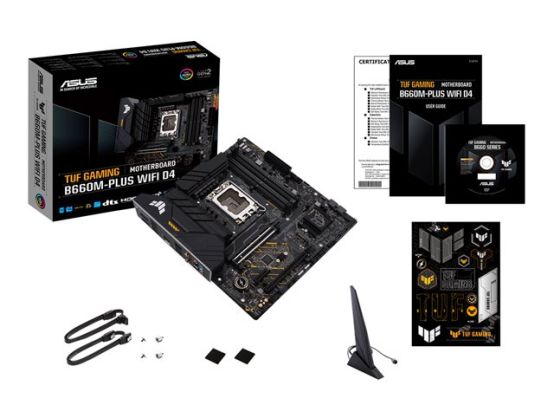

Included AccessoriesASUS Wi-Fi moving aerial, 1 x M.2 rubber package, 1 x M.2 screw, TUF stickers
Cables Included2 x Serial ATA cable
Software IncludedDrivers & Utilities, ASUS AI Suite III, ASUS TUF GAMING CPU-Z, MyAsus, Norton AntiVirus (Trial), WinRAR, ASUS EZ Flash 3
