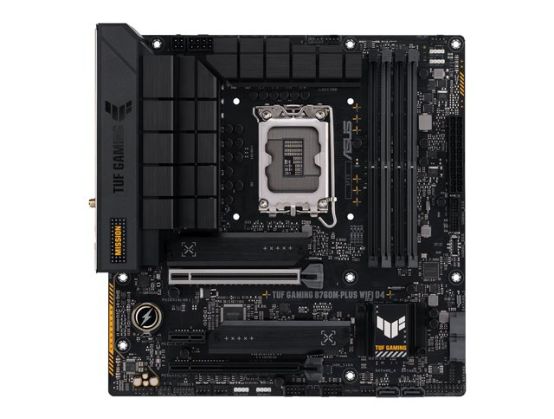

ASUS TUF GAMING B760M-PLUS WIFI D4 - Motherboard - micro ATX - LGA1700 Socket - B760 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 2x2 - 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)

Name: ASUS TUF GAMING B760M-PLUS WIFI D4 - Motherboard - micro ATX - LGA1700 Socket - B760 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 2x2 - 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
Brand: ASUS
SKU: 1TCPTMOT-004781
Price: 167.09 GBP
Availability: OutOfStock

SKU

1TCPTMOT-004781

Manufacture#: TUF GAM B760M-PLUS WIFI D4

£139.24

£167.09 inc VAT

Checking delivery…

Product details

Motherboard
micro ATX
LGA1700 Socket
B760 Chipset

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

ASUS TUF GAMING B760M-PLUS WIFI D4
Motherboard
micro ATX
LGA1700 Socket
B760 Chipset
USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 2x2
2.5 Gigabit LAN, Wi-Fi 6, Bluetooth
onboard graphics (CPU required)
HD Audio (8-channel)

Overview

ASUS TUF GAMING B760M-PLUS WIFI D4 - motherboard - micro ATX - LGA1700 Socket - B760

Specification

Product Description ASUS TUF GAMING B760M-PLUS WIFI D4 - motherboard - micro ATX - LGA1700 Socket - B760

Product Type Motherboard - micro ATX

Chipset Type Intel B760

Processor Socket 1 x LGA1700 Socket

Compatible Processors (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)

Max RAM Size 128 GB

RAM Supported 4 DIMM slots - DDR4, non-ECC, unbuffered

Storage Ports 4 x SATA-600 (RAID), 2 x M.2

USB / FireWire Ports 1 x USB-C 3.2 Gen 2x2 + 4 x USB 3.2 Gen 2 + 1 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)

Audio HD Audio (8-channel)

LAN 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2

General

Product Type Motherboard - micro ATX

Chipset Type Intel B760

Processor Socket LGA1700 Socket

Max Processors Qty 1

Compatible Processors (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)

Supported RAM

Max Size 128 GB

Technology DDR4

Bus Clock 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 5000 MHz (O.C.), 5066 MHz (O.C.)

Supported RAM Integrity Check Non-ECC

Registered or Buffered Unbuffered

Features Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)

Audio

Type HD Audio (8-channel)

Compliant Standards Digital Theater Systems (DTS), High Definition Audio

LAN

Network Interfaces 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2

Expansion / Connectivity

Expansion Slots 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 4.0 x1 ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot)

Storage Interfaces SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2

RAID Features Intel Rapid Storage Technology

Interfaces 1 x HDMI ¦ 1 x DisplayPort ¦ 2 x aerial ¦ 4 x USB 3.2 Gen 2 ¦ 2 x USB 2.0 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x USB-C 3.2 Gen2x2 ¦ 1 x USB 3.2 Gen 1 ¦ 1 x SPDIF out ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-out - mini-jack

Internal Interfaces 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x Thunderbolt - header

Power Connectors 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector

Features

BIOS Type AMI

BIOS Features UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode

Sleep / Wake Up Wake on LAN (WOL), wake on PME

Hardware Features ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, TUF ESD Guards, 6 Layer PCB, ProCool Power Connector, Dr.MOS MOSFET, TUF LANGuard, overvoltage protection, ASUS SafeDIMM, M.2 heatsink, ASUS ProCool, Water Pump Header, pre-mounted I/O shield, Intel Turbo Boost Max Technology 3.0, ASUS TUF Protection, ASUS Aura Sync, ASUS OptiMem II, 12+1 Phase Power Design, ASUS SafeSlot Core+, M.2 Q-Latch, Windows 11 compatible, CPU Socket lever protector, VRM heatsink design

Miscellaneous

Included Accessories ASUS Wi-Fi moving aerial, 1 x M.2 rubber package, M.2 screw package, TUF certification card, TUF GAMING sticker

Cables Included 2 x Serial ATA cable

Software Included ASUS AI Suite III, PC Cleaner, WinRAR, ASUS TUF GAMING CPU-Z, ASUS AURA Creator, MyAsus, Armoury Crate, Norton 360 for Gamers, ASUS Fan Xpert 2+, DTS Audio Processing

Width 24.4 cm

Depth 24.4 cm
