USB-C Gen 2x2, USB 3.2 Gen 2, USB-C Gen1, USB 3.2 Gen 1, USB-C Gen2
2.5 Gigabit LAN, Wi-Fi 6, Bluetooth
onboard graphics (CPU required)
HD Audio (8-channel)
Overview

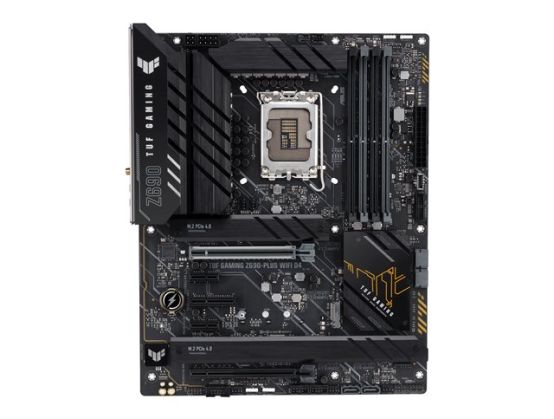

ASUS TUF GAMING Z690-PLUS WIFI D4 takes all the essential elements of the latest Intel processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard offers rock-solid and stable performance for marathon gaming. Aesthetically, TUF GAMING Z690-PLUS WIFI D4 sports the new TUF Gaming logo and incorporates simple geometric design elements to reflect the dependability and stability that defines the TUF Gaming series.
USB / FireWire Ports1 x USB-C Gen 2x2 + 1 x USB-C Gen 1 + 2 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + (1 x USB-C Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)
AudioHD Audio (8-channel)
LAN2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Interfaces1 x DisplayPort ¦ 1 x HDMI ¦ 1 x USB-C Gen2x2 ¦ 2 x USB 3.2 Gen 2 ¦ 4 x USB 3.2 Gen 1 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x TOSLINK ¦ 1 x USB-C Gen1 ¦ 1 x LAN (2.5Gigabit Ethernet)
Internal Interfaces4 x USB 2.0 - header ¦ 1 x USB-C Gen2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x Thunderbolt - header ¦ 1 x serial - header
Power Connectors24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector
Features
BIOS TypeAMI
BIOS FeaturesUEFI BIOS, ASUS EZ Flash 3
Sleep / Wake UpWake on LAN (WOL), wake on PME
Hardware FeaturesIntel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, ASUS OptiMem II, TUF LANGuard, audio jack detect technology, jack retasking, ASUS DIGI+ VRM, ASUS Enhanced DRAM Overcurrent Protection, ASUS Overvoltage Protection, ASUS SafeSlot, ASUS Stainless Steel Back I/O, M.2 Q-Latch, ASUS Q-Design, Q-DIMM, Q-LED, Q-Slot, ASUS EZ DIY, ASUS ProCool, pre-mounted I/O shield, SafeDIMM, ASUS Aura Sync, Armoury Crate, ASUS Fan Xpert 4, ASUS TurboV EVO, ASUS EPU (Energy Processing Unit), CrashFree BIOS 3, Preboot eXecution Environment (PXE), CPU Socket lever protector, M.2 heatsink, 6 Layer PCB, 14+1 DrMOS power stages
Miscellaneous
Included Accessories2 x M.2 rubber package, 1 x M.2 screw, TUF stickers
Cables Included2 x Serial ATA cable
Software IncludedDrivers & Utilities, ASUS AURA Creator, ASUS AI Suite III, ASUS TUF GAMING CPU-Z, MyAsus, Norton AntiVirus (Trial), WinRAR
