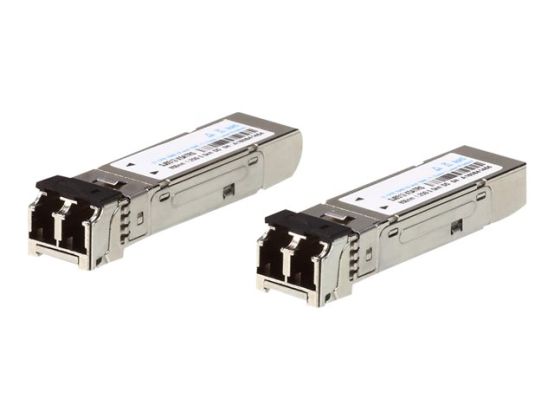

ATEN 2A-137G - SFP (mini-GBIC) transceiver module
Checking delivery…
Product details
SFP (mini-GBIC) transceiver module
LC single-mode
up to 10 km
1310 nm (pack of 2)
Payment options available at checkout
Main features
ATEN 2A-137G
SFP (mini-GBIC) transceiver module
LC single-mode
up to 10 km
1310 nm (pack of 2)
Overview
The 2A-137G Fiber Single-Mode 1.25G SFP Transceiver Module provides 1 GbE connectivity up to 10 kilometers. The transceiver can be installed in both transmitters and receivers. As a hot pluggable module with a standard duplex connector for fiber communications, the 2A-137G works with single-mode-fiber (SMF) connections and operates at a nominal wavelength of 1310 nm which makes it a cost-effective and high performance transceiver.
Product Description
ATEN 2A-137G - SFP (mini-GBIC) transceiver module
Device Type
SFP (mini-GBIC) transceiver module - LC single-mode
Packaged Quantity
2 (specifications are for single item)
Form Factor
Plug-in module
Data Transfer Rate
1.25 Gbps
Optical Wave Length
1310 nm
Max Transfer Distance
10 km
Dimensions (WxDxH)
1.46 cm x 5.59 cm x 1.3 cm
Weight
20 g
General
Packaged Quantity
2 (specifications are for single item)
Device Type
SFP (mini-GBIC) transceiver module
Form Factor
Plug-in module
Networking
Connectivity Technology
Wired
Data Transfer Rate
1.25 Gbps
Optical Wave Length
1310 nm
Max Transfer Distance
10 km
Features
Digital Diagnostics Monitoring (DDM)
Expansion / Connectivity
Interfaces
1 x network - LC single-mode x 2
Miscellaneous
Compliant Standards
EN 60825-1, FDA 21CFR1040.10, FDA 21CFR1040.11, RoHS, Laser Class 1, MSA SFF-8472
Dimensions & Weight
Width
1.46 cm
Depth
5.59 cm
Height
1.3 cm
Weight
20 g
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
70 °C
