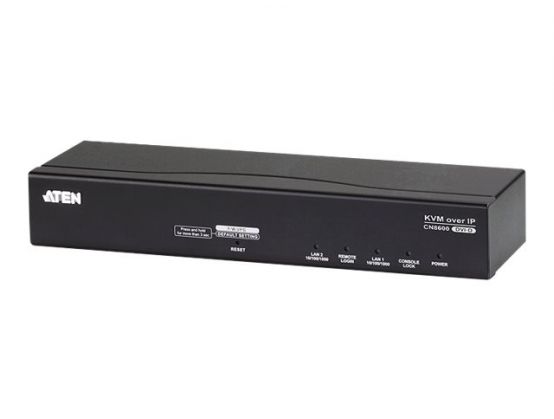

The CN8600 DVI KVM over IP is a cost efficient over-IP device, which allows remote access of digital video, audio and virtual media via remote control of a PC or workstation.¦For user-friendly operation, a mini USB port on the rear panel is designed as a Laptop USB Console (LUC) port or a Virtual Media port. No additional monitor, keyboard or mouse is required locally for routine maintenance - simply use the LUC port to connect a laptop, and access any computer connected to the switch for easy on-site management. The CN8600's Virtual Media function allows a user to perform diagnostic testing, file transfers, or apply OS / applications updates and patches from a remote console.¦To ensure seamless connectivity, the CN8600 is equipped with dual LAN/dual power functionality to keep operation in the server room smooth and efficient. The CN8600 also supports speaker and microphone for use locally and remotely.
- Provides over-IP capability to DVI KVM switches that do not have built-in over-IP functionality (1)
- Local console provides USB keyboard and mouse support
- A mini USB port in the rear panel serves as a Virtual Media USB port, as well as a Laptop USB Console (LUC) port
- Dual power supply for power backup
- High video resolution
- Enhanced fps (frames per second) throughput for crisp responsive video display
- Console access right management
- End session feature - administrators can terminate running sessions
- Firmware upgradable via remote access
- Port share mode allows multiple users to gain access to a server simultaneously
- Local/remote share mode conveniently grants shared or exclusive console privilege
- DDNS allows mapping of a dynamic IP address assigned by a DHCP server to a host name
- Export/import user account and configuration settings
- Enable/disable browser operation
- Flexible console access right management
- Browser-based and AP GUIs offer a unified multi language interface to minimize user training time and increase productivity
- Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software package requirements
- Full-screen or sizable and scalable virtual remote desktop
- Magic panel with configurable function for quick launch
- Supports SSL 128-bit data encryption and RSA 1024-bit certificates to secure user slogging in from browsers
- Supports IP/MAC Filter
- Supports password protection
- Virtual media enables file applications, OS patching, software installation and diagnostic testing
- Works with USB-enabled servers at OS and BIOS level
- Full screen video display or scalable video display
- Message Board for communication among remote users
- On-screen keyboard with multilanguage support
- BIOS-level access
