ATEN - parallel adapter - USB - IEEE 1284
Checking delivery…
Product details
Parallel adapter
USB
IEEE 1284
Payment options available at checkout
Main features
ATEN
Parallel adapter
USB
IEEE 1284
Overview

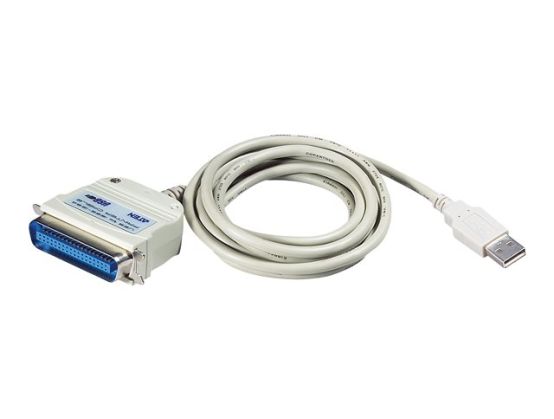

The ATEN USB Parallel adapter provides an easy way to connect an USB-enabled desktop PC or laptop to a parallel printer. It uses a USB type B receptacle for connection to the USB port and C-36 connection to the printer. The USB Parallel Adapter draws power from the USB port, so no external power supply is required.
Product Description
ATEN - parallel adapter - USB - IEEE 1284
Device Type
Parallel adapter
Form Factor
External
Interface (Bus) Type
USB
Ports
IEEE 1284
Dimensions (WxDxH)
5.3 cm x 4.3 cm x 19.5 cm
Weight
0.1 kg
Cabling Type
Parallel
Data Transfer Rate
1.2 Mbps
System Requirements
Microsoft Windows 95 OSR 2.1, Microsoft Windows 98/2000
Manufacturer Warranty
3-year warranty
General
Device Type
Parallel adapter
Form Factor
External
Interface (Bus) Type
USB
Networking
Ports
IEEE 1284
Connectivity Technology
Wired
Cabling Type
Parallel
Data Transfer Rate
1.2 Mbps
Expansion / Connectivity
Interfaces
1 x IEEE 1284 (EPP/ECP) - 36 PIN Centronics - male - 1
Connections
1 x USB - 4 pin USB Type A
Miscellaneous
Cables Included
1 x serial cable (integrated) - 1.8 m
Mounting Kit
Not available
Compliant Standards
Plug and Play
Package Type
Retail
Software / System Requirements
OS Required
Microsoft Windows 95 OSR 2.1, Microsoft Windows 98/2000
Min RAM Size
16 MB
Dimensions & Weight
Width
5.3 cm
Depth
4.3 cm
Height
19.5 cm
Weight
0.1 kg
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
