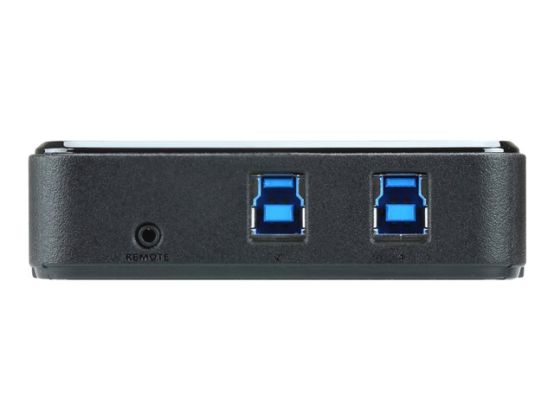

ATEN US234 - USB peripheral sharing switch - 4 ports
Checking delivery…
Product details
USB peripheral sharing switch
4 x USB 3.2 Gen 1
desktop
Payment options available at checkout
Main features
ATEN US234
USB peripheral sharing switch
4 x USB 3.2 Gen 1
desktop
Overview
ATEN US234 is a 2-port USB 3.0 peripheral sharing device that allows users to share four USB devices between 2 different computers. US234 is USB 3.0 compliant, which can support data transfer rate up to 5Gbps and backwards compatible with USB 2.0 and USB1.1. It is perfect for high-bandwidth devices, such as USB docking stations or HD cameras.
Enables 2 computers to share 4 USB 3.0 devices
Simple port selection via remote port selector for convenient switch placement
USB 3.0 compliant, supporting data transfer rates of up to 5Gbps
LEDs indicates which computer is active
Over-current protection
Bus-powered
Micro USB power jack for additional power supply
Hot pluggable, no driver or software required
Product Description
ATEN US234 - USB peripheral sharing switch - 4 ports
Device Type
USB peripheral sharing switch - 4 ports
Subtype
USB
Ports
4 x USB 3.2 Gen 1
Features
USB powered, over-current protection
Compliant Standards
USB 1.1, USB 2.0, USB 3.0, USB 3.2 Gen 1
Dimensions (WxDxH)
9.3 cm x 9.37 cm x 2.68 cm
Weight
130 g
General
Device Type
USB peripheral sharing switch - 4 ports
Enclosure Type
Desktop
Subtype
USB
Ports
4 x USB 3.2 Gen 1
Features
USB powered, over-current protection
Compliant Standards
USB 1.1, USB 2.0, USB 3.0, USB 3.2 Gen 1
Status Indicators
Select
Expansion / Connectivity
Interfaces
4 x USB 3.2 Gen 1 Type A ¦ 2 x USB 3.2 Gen 1 Type B
Miscellaneous
Cables Included
2 x USB-B to USB-A cable - 1.2 m
Compliant Standards
RoHS, WEEE
Dimensions & Weight
Width
9.3 cm
Depth
9.37 cm
Height
2.68 cm
Weight
130 g
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 80% (non-condensing)
Min Storage Temperature
-20 °C
Max Storage Temperature
60 °C
