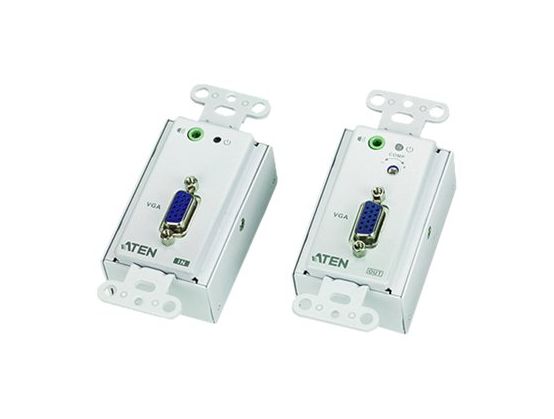

The VE156 VGA Over Cat 5 Extender Wall Plate extends VGA and audio signals up to 150 m using Cat 5e cable. It supports popular wide screen formats and ensures excellent video quality over long distance transmissions. The VE156 combination can further extend the distance or multiply sources/displays.¦The VE156 can be powered at the transmitter or receiver side, and uses a second Cat 5e cable to transmit the power signal. The VE156's compact wall plate design does away with bulky cables and allows a neat and convenient installation. It is an ideal solution for function rooms, museums and any environment that requires equipment or cabling to be kept hidden from public view.
Uses two Cat 5e cables to connect the local and remote units - one to transmit video and audio, and another for power
Remotely powered from the transmitter or receiver side
Extends the distance between VGA source and VGA display
Superior video quality - up to 1920 x 1200 at 60 Hz (30 m), 1280 x 1024 at 60 Hz (150 m)
Adjustable gain control - manually adjusts signal strength to compensate for distance
Supports wide screen formats
Supports hot-plugging
Decora type design is easily configurable to fit various wall plates
LED indication of power sources / connection status
Supports stereo audio
Built-in 8 KV/15 KV ESD protections
Easy installation
Wall mountable type for a neat and cleaner installation
Interfaces1 x VGA (input) - HD-15 female ¦ 1 x VGA (output) - HD-15 female ¦ 1 x audio (input) - mini jack female ¦ 1 x audio (output) - mini jack female
