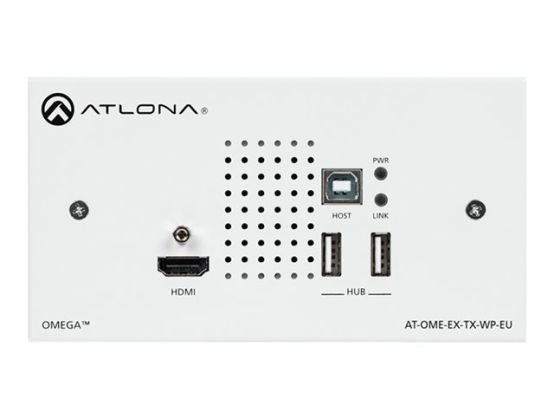

The Atlona AT-OME-EX-TX-WP-E is an HDBaseT transmitter for video up to 4K/60 4:2:0, plus embedded audio, control, and USB over distances up to 330 feet (100 meters). It is designed for commercial installations in Europe, and includes interchangeable EU and UK faceplates and brackets. Part of the Omega Series of integration products for modern AV communications and collaboration, the OME-EX-TX-WP-E is HDCP 2.2 compliant and transmits RS-232 control signals. With a matching HDBaseT receiver, the integrated USB extension addresses the challenge of connecting between USB devices at remote locations, and is ideal for software video conferencing and touch or interactive displays. The OME-EX-TX-WP-E includes a USB 2.0 host interface for a PC, plus two peripheral devices such as a speakerphone, microphone, or keyboard and mouse. This transmitter is ideal for use with Omega Series receivers as well as switchers with HDBaseT inputs.
Two-gang enclosure for EU and UK wallplate openings - interchangeable EU and UK trim kits
HDBaseT transmitter for HDMI, Ethernet, power, control, and USB
USB 2.0 interfacing and extension up to 330 feet (100 meters)
4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
FeaturesFirmware upgradable, built-in 2-port USB 2.0 hub, HDCP compliant, 4K resolution support, CEC passthrough, 12-bit Deep Colour support, LPCM 7.1 support, Dolby TrueHD support, Dolby Digital Plus support, DTS-HD Master Audio support, DTS support, LPCM 5.1 support, Dolby Atmos support, DTS:X support, Dolby Digital support, 10-bit Deep Colour support, 8-bit Deep Colour support
Compliant StandardsIEEE 802.3af, HDCP 2.2
Expansion / Connectivity
Interfaces1 x HDMI ¦ 1 x RS-232/IR - terminal block ¦ 2 x USB 2.0 - Type A ¦ 1 x mini-USB (management) ¦ 1 x USB - Type B ¦ 1 x Ethernet 10Base-T/100Base-TX - RJ-45 ¦ 1 x HDBaseT - RJ-45
