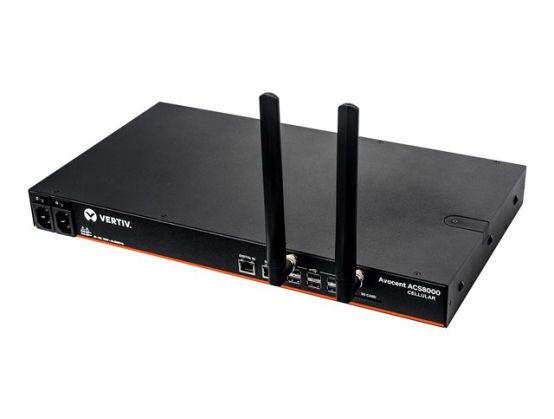

Avocent ACS 8000 Advanced Console Server ACS8008-EU-DAC-400
Console server
8 ports
1GbE, RS-232, RS-422, RS-485
LTE B1/B20/B28/B3/B7/B8
1U
rack-mountable
Overview
The Avocent ACS8000 advanced serial console server series continues with a new, ground-up platform of innovation, integrating important connectivity features such as cellular, gigabit fiber, USB, and sensors. IT professionals and network operations center personnel can now harness these new capabilities to further enable them to perform secure, remote data center management and out-of-band management of IT assets from anywhere in the world. Featuring a dual core ARM processor architecture with expanded memory capabilities, the updated Linux operating system and DS View management software, provides the Avocent ACS8000 optimal performance, security, and reliability for a complete out-of-band management solution.
Product DescriptionAvocent ACS 8000 Advanced Console Server ACS8008-EU-DAC-400 - console server
Device TypeConsole server
Form FactorRack-mountable - 1U
LocalisationEurope
Processor1 x ARM A9
RAM1 GB
Flash Memory16 GB
Ports Qty8
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet, RS-232, RS-422, RS-485
Mobile Broadband AccessYes
Mobile BandLTE B1/B20/B28/B3/B7/B8
PowerAC 120/230 V (50/60 Hz)
Dimensions (WxDxH)43.82 cm x 24.13 cm x 4.45 cm
Extended Specification
General
Device TypeConsole server
Height (Rack Units)1U
Width43.82 cm
Depth24.13 cm
Height4.45 cm
LocalisationEurope
Processor / Memory / Storage
Processors Installed1 x ARM A9
RAM1 GB DDR3L SDRAM
Flash Memory16 GB
Networking
Form FactorRack-mountable
Ports Qty8
Connectivity TechnologyWired
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet, RS-232, RS-422, RS-485
Authentication MethodDSView
Communications
Mobile Broadband AccessYes
Mobile BandLTE B1/B20/B28/B3/B7/B8
Supported Flash Memory CardsSD Memory Card
Expansion / Connectivity
Expansion Slots1 (total) / 1 (free) x SIM card
Interfaces2 x Ethernet 1000 - SFP (mini-GBIC) ¦ 2 x 1000Base-T - RJ-45 ¦ 1 x management (RS-232) - RJ-45 ¦ 2 x RS-232/422/485 - RJ-45 ¦ 6 x RS-232 - RJ-45 ¦ 8 x USB 2.0 - Type A ¦ 1 x sensor - RJ-45 ¦ 4 x sensor
Miscellaneous
Compliant StandardsFCC Class A certified, UL, VCCI, cUL, EN 60950, ICES-003, CB, UL 60950-1 Second Edition, KCC, FCC Part 22, FCC Part 24, PTCRB, FCC Part 27, IEC 60950-1 Second Edition, RCM, FCC Part 15 Class B, CU, cUL No.60950-1 Second Edition
