AXIS F2115-R is designed for use with 2nd generation main units and cables from AXIS with SMA-FAKRA connectors to withstand vibrations and ensure a ruggedized installation. It offers up to 1080p at 60 fps, 107°-56° horizontal field of view, and good low-light performance in color.

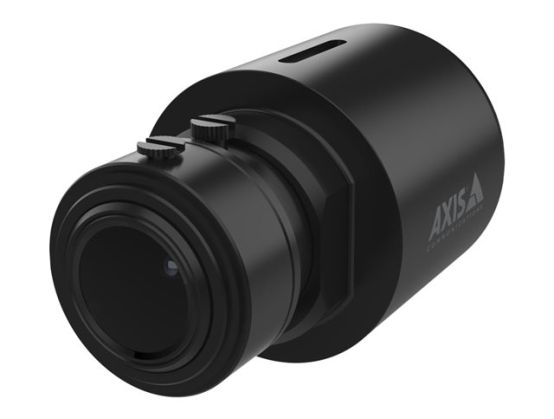

Product DescriptionAXIS F2115-R Varifocal Sensor - camera sensor unit
Product TypeCamera sensor unit
Product MaterialAluminium
Dimensions (WxDxH)2.98 cm x 5 cm x 2.98 cm
Weight50 g
ColourBlack, NCS S 9000-N
Compliant StandardsEN 61000-6-1, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-64, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, VCCI Class A, EAC, IP50, RCM, AS/NZS CISPR 32 Class A, EN 55032 Class A, CAN/CSA-C22.2 No. 62368-1, EN 55035, IEC/EN/UL 62368-1, ICES-3(A)/NMB-3(A), UN ECE R118, IEC/EN 61373 Category 1 Class B, NEMA TS-2 (2.2.7-2.2.9), ECE-R10 Rev.6 (E approval), FCC Part 15 Subpart B:2020 Class A, KS C 9832 Class A, KS C 9835, IEC/EN 60529, IEC TR 60721-4-5 Class 5M3
Manufacturer Warranty5-year warranty
Designed ForAXIS F9104-B, F9111 Main Unit, F9114, F9114-B
Extended Specification
General
Product TypeCamera sensor unit
Product MaterialAluminium
Width2.98 cm
Depth5 cm
Height2.98 cm
Weight50 g
ColourBlack, NCS S 9000-N
Miscellaneous
FeaturesPVC free, 1/2.8" CMOS, BFR free, fixed IR-cut filter, 0.1 lux, 108° horizontal viewing, SMA connector, maximum resolution: 1920 x 1080, up to 60 fps at 1080p, up to 180 fps at 720p, varifocal
Compliant StandardsEN 61000-6-1, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-64, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, VCCI Class A, EAC, IP50, RCM, AS/NZS CISPR 32 Class A, EN 55032 Class A, CAN/CSA-C22.2 No. 62368-1, EN 55035, IEC/EN/UL 62368-1, ICES-3(A)/NMB-3(A), UN ECE R118, IEC/EN 61373 Category 1 Class B, NEMA TS-2 (2.2.7-2.2.9), ECE-R10 Rev.6 (E approval), FCC Part 15 Subpart B:2020 Class A, KS C 9832 Class A, KS C 9835, IEC/EN 60529, IEC TR 60721-4-5 Class 5M3
Manufacturer Warranty
Service & SupportLimited warranty - 5 years
Environmental Parameters
Min Operating Temperature-40 °C
Max Operating Temperature60 °C
Compatibility Information
Designed ForAXIS F9104-B, F9111 Main Unit, F9114, F9114-B
