AXIS M1075-L BOX CAMERA 2MP/HDTV 30FPS IR DPLU 103 FOV

Name: AXIS M1075-L BOX CAMERA 2MP/HDTV 30FPS IR DPLU 103 FOV
Brand: AXIS
SKU: 1TSECSPD-005155
Price: 375.31 GBP
Availability: InStock

SKU

1TSECSPD-005155

Manufacture#: 02350-001

£312.76

£375.31 inc VAT

Checking delivery…

Product details

Network surveillance camera
box
colour (Day&Night)
1920 x 1080

View full product specification

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

AXIS M1075-L
Network surveillance camera
box
colour (Day&Night)
1920 x 1080
1080p
M12 mount
fixed iris
fixed focal
audio
LAN 10/100
H.264, MPEG-4 Part 10, AVC, H.265, MPEG-H Part 2, HEVC, MJPEG
PoE Class 3

Overview

Ideal for small stores and residential care, this compact, easy-to-install camera offers two-way audio and great image quality - around the clock. It supports advanced analytics based on deep learning on the edge.

Specification

Product Description AXIS M1075-L - network surveillance camera - box

Device Type Network surveillance camera - fixed - box

Audio Yes: two-way audio capability, built-in microphone, built-in speaker

Camera Mount Type Wall mount

Dimensions (WxDxH) 6 cm x 9.3 cm x 10.5 cm

Weight 153 g

Colour White, NCS S 1002-B

Connectivity Technology Wired

Camera Colour - Day&Night

Max Resolution 1920 x 1080

Frame Rate (max) 30 frames per second

Motion Detection Yes

Video Modes 1080p

Optical Sensor Type RGB CMOS - 1/2.9"

Minimum Illumination 0.18 lux - colour - F2.0 - 50 IRE ¦ 0.04 lux - B&W - F2.0 - 50 IRE ¦ 0 lux - IR

Focal Length Control Fixed focal

Focal Length 3.16 mm

Lens Mounting M12 mount

Lens Iris F/2.0 - fixed iris

Interfaces Ethernet 10Base-T/100Base-TX

Voltage PoE Class 3

Features Lightfinder technology, Wide Dynamic Range (WDR), progressive scanning, infrared-cut filter, deep learning processing unit (DLPU), Zipstream technology, Adaptive Bitrate (ABR), Multi-Bitrate (MBR), Variable Bitrate (VBR), saturation control, contrast control, brightness control, sharpness control, 180° image rotation, 270° image rotation, 90° image rotation, compression, Corridor mode, exposure mode, exposure zone, image mirror, image overlay, white balance, polygon privacy mask, full duplex audio, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, VoIP support, human detection, Vehicle Detection, Line Crossing Detection, Face Recognition, secure boot, IP address filtering, aluminium housing, plastic housing, PIR detection

Manufacturer Warranty 5-year warranty

Environmental Parameters (operating) 0 °C - 35 °C; 10 - 85% RH (non-condensing) relative humidity

General

Device Type Network surveillance camera

Audio Support Yes: two-way audio capability, built-in microphone, built-in speaker

Audio Formats LPCM, AAC-LC, G.711, PCM, ADPCM, OPUS

Form Factor Box

Camera Mount Type Wall mount

Connectivity Technology Wired

Width 6 cm

Depth 9.3 cm

Height 10.5 cm

Weight 153 g

Localisation United States, United Kingdom, Korea, Japan, India, Europe, China, Brazil, Argentina, Australia

Camera

Type Colour - Day&Night - fixed

Digital Video Format H.264, MPEG-4 Part 10, AVC, H.265, MPEG-H Part 2, HEVC, MJPEG

Max Digital Video Resolution 1920 x 1080

Motion Detection Yes

Video Modes 1080p

Exposure Range 1/5 sec - 1/19000 sec

Minimum Illumination 0.18 lux - colour - F2.0 - 50 IRE ¦ 0.04 lux - B&W - F2.0 - 50 IRE ¦ 0 lux - IR

Infrared LEDs Yes

Infrared Distance 18 m

Digital Video Capture Resolution 1920 x 1080, 320 x 240, 1280 x 960, 640 x 360

Frame Rate (max) 30 frames per second

RAM 1 GB

Flash Memory 512 MB

Image Sensor

Type RGB CMOS 1/2.9"

Lens Construction

Type M12 mount - fixed focal

Focal Length 3.16 mm

Lens Iris F/2.0 fixed iris

Horizontal Field of View (degree) 103

Vertical Field of View (degree) 55

Interfaces

Network Interface Ethernet 10Base-T/100Base-TX

Network Protocols IPv4, IPv6, USGv6, ICMP, HTTP, HTTPS, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, NTP, NTS, RTSP, RTCP, RTP, SRTP, RTSPS, TCP/IP, UDP/IP, IGMP, IGMPv2, IGMPv3, DHCP, SSH, SIP, LLDP, MQTT, Zeroconf, Syslog

Alarm Inputs Qty 1

Alarm Outputs Qty 1

Expansion / Connectivity

Ports LAN/power - RJ-45 ¦ USB ¦ Micro-HDMI

Supported Memory Cards microSD Card, microSDHC Card, microSDXC Card

Miscellaneous

Included Accessories Wall mount kit, terminal block connectors

Compliant Standards AES-256, Common Criteria EAL4+, IEEE 802.1x, TLS v1.3, IEEE 802.1ar, TLS v1.2, X.509, BFR-free, CFR free, PVC-free, IEEE 802.3af, IEEE 802.3at, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 B Class A, ICES-3(A)/NMB-3(A), KS C 9832 Class A, KS C 9835, AS/NZS CISPR 32 Class A, RCM, VCCI Class A, CAN/CSA C22.2 No. 62368-1 Third Edition, IEC/EN/UL 62368-1, IEC 62471, NIST SP500-267

Colour White, NCS S 1002-B

Power

Power Requirements PoE Class 3

Power Device 5.4 Watt

Software / System Requirements

Software Included AXIS Object Analytics, AXIS Video Motion Detection, Windows decoder 1-user licence, AXIS Companion, AXIS Camera Station

Manufacturer Warranty

Service & Support Limited warranty - 5 years

Environmental Parameters

Min Operating Temperature 0 °C

Max Operating Temperature 35 °C

Relative Humidity (operating) 10 - 85% RH (non-condensing)

Product Accessories

AXIS

AXIS AXIS T91A10 - Camera mounting kit - NCS S 1002-B

1 in stock

AXIS

AXIS T91A10 - Camera mounting kit - NCS S 1002-B

£18.17

£21.80 inc VAT

AXIS AXIS T91A11 - Camera stand - white - for AXIS M1103, M1104, M1113, M1114

3 in stock

AXIS

AXIS T91A11 - Camera stand - white - for AXIS M1103, M1104, M1113, M1114

£13.24

£15.89 inc VAT

AXIS T91A23 Tile Grid - Camera mount - ceiling mountable - indoor - white - for AXIS M3057, M3058, P1445, P1447, P1448, P3235, P3375, Q1645, Q1647, Q3515, Q3518, Q3527

AXIS AXIS T91A23 Tile Grid - Camera mount - ceiling mountable - indoor - white - for AXIS M3057, M3058, P1445, P1447, P1448, P3235, P3375, Q1645, Q1647, Q3515, Q3518, Q3527

1 in stock

AXIS

AXIS T91A23 Tile Grid - Camera mount - ceiling mountable - indoor - white - for AXIS M3057, M3058, P1445, P1447, P1448, P3235, P3375, Q1645, Q1647, Q3515, Q3518, Q3527

£91.46

£109.75 inc VAT

AXIS AXIS TM1901 WIRELESS KIT UK .

2 in stock

AXIS

AXIS TM1901 WIRELESS KIT UK .

£56.14

£67.37 inc VAT

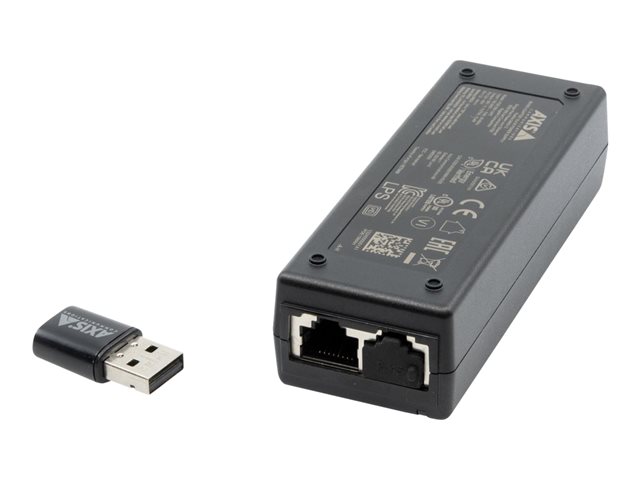

AXIS AXIS TM1901 WIRELESS KIT FOR AXIS M1075-L BOX CAMERA.
