AXIS

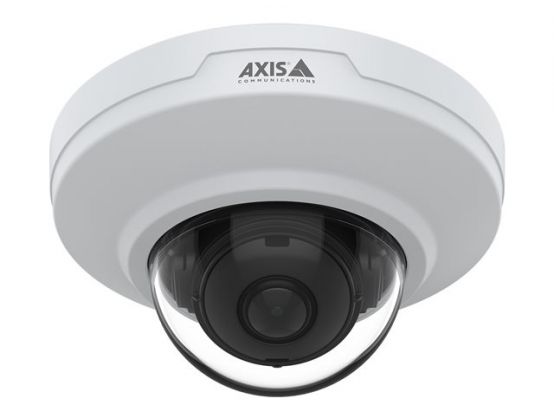

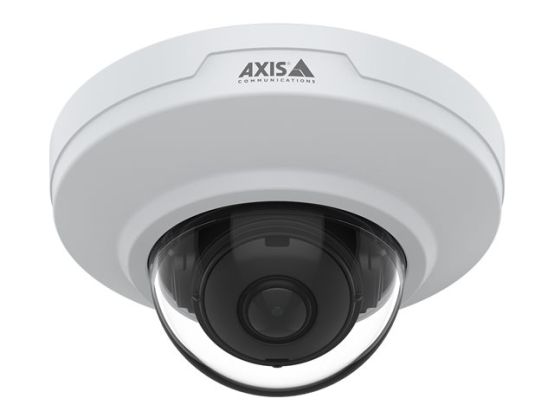

AXIS M3086-V

Name: AXIS M3086-V
Brand: AXIS
SKU: 1TSECSPD-004807
Price: 409.2 GBP
Availability: InStock

SKU

1TSECSPD-004807

Manufacture#: 02374-001

Be the first to review this product

£341

£409.20 inc VAT

Checking delivery…

Product details

Network surveillance camera
dome
vandal resistant / impact resistant / dust resistant / water resistant
colour (Day&Night)

View full product specification

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

AXIS M3086-V
Network surveillance camera
dome
vandal resistant / impact resistant / dust resistant / water resistant
colour (Day&Night)
4 MP
2688 x 1512
fixed iris
fixed focal
audio
LAN 10/100
MJPEG, H.264, MPEG-4 Part 10, AVC, H.265, MPEG-H Part 2, HEVC
PoE Plus Class 2

Overview

This cost-efficient, compact mini dome delivers great image quality in challenging light conditions. And, with a deep learning processing unit, you can benefit from advanced analytics based on deep learning on the edge.

Specification

Product Description AXIS M3086-V - network surveillance camera - dome

Device Type Network surveillance camera - fixed - dome - vandal resistant / impact resistant / dust resistant / water resistant

Audio Yes: two-way audio via optional audio and I/O interface

Dimensions (WxDxH) 10.1 cm x 10.1 cm x 5.6 cm

Weight 150 g

Colour White, NCS S 1002-B

Connectivity Technology Wired

Camera Colour - Day&Night

Max Resolution 2688 x 1512

Frame Rate (max) 30 frames per second

Motion Detection Yes

Optical Sensor Type PS RGB CMOS - 1/2.7" - 4 MP

Minimum Illumination 0.19 lux - colour - F2.1 - 50 IRE ¦ 0.03 lux - B&W - F2.1 - 50 IRE

Focal Length Control Fixed focal

Focal Length 2.4 mm

Lens Iris F/2.1 - fixed iris

Panning Range (degree) -175 to +175

Tilting Range (degree) -80 to +80

Interfaces Ethernet 10Base-T/100Base-TX

Voltage PoE Plus Class 2

Features IR Corrected lens, infrared-cut filter, Lightfinder technology, deep learning processing unit (DLPU), Zipstream technology, Variable Bitrate (VBR), Multi-Bitrate (MBR), up to 2 view areas, 180° image rotation, 270° image rotation, 90° image rotation, brightness control, colour control, compression, contrast control, Corridor mode, exposure control, image mirror, motion-adaptive exposure, Privacy Mask Function, sharpness control, white balance, Wide Dynamic Range (WDR), digital PTZ function, Axis device ID, Axis Edge Vault, brute force delay protection, centralised certificate management, digest authentication, HTTPs encryption, IP address filtering, password protection, secure boot, signed firmware, user access log, VAPIX support, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Pixel Counter Support, human detection, Vehicle Detection, memory card encryption, NAS-Ready

Manufacturer Warranty 5-year warranty

Environmental Parameters (operating) 0 °C - 45 °C; 10 - 85% RH (non-condensing) relative humidity

General

Device Type Network surveillance camera

Audio Support Yes: two-way audio via optional audio and I/O interface

Form Factor Dome

Connectivity Technology Wired

Width 10.1 cm

Depth 10.1 cm

Height 5.6 cm

Weight 150 g

Localisation Argentina, Australia, Brazil, China, Europe, India, Japan, Korea, United Kingdom, United States

Camera

Type Colour - Day&Night - fixed - vandal resistant / impact resistant / dust resistant / water resistant

Digital Video Format MJPEG, H.264, MPEG-4 Part 10, AVC, H.265, MPEG-H Part 2, HEVC

Max Digital Video Resolution 2688 x 1512

Motion Detection Yes

Exposure Range 1/5 sec - 1/38500 sec

Minimum Illumination 0.19 lux - colour - F2.1 - 50 IRE ¦ 0.03 lux - B&W - F2.1 - 50 IRE

Digital Video Capture Resolution 2688 x 1512, 320 x 240

Frame Rate (max) 30 frames per second

RAM 1 GB

Flash Memory 512 MB

Image Sensor

Type 4 MP PS RGB CMOS 1/2.7"

Lens Construction

Type Fixed focal

Focal Length 2.4 mm

Lens Iris F/2.1 fixed iris

Horizontal Field of View (degree) 130

Vertical Field of View (degree) 93

Panning

Range (degree) -175 to +175

Tilting

Range (degree) -80 to +80

Interfaces

Network Interface Ethernet 10Base-T/100Base-TX

Network Protocols IPv4, IPv6, USGv6, ICMP, HTTP, HTTPS, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP/IP, UDP/IP, IGMP, IGMPv2, IGMPv3, DHCP, SSH, LLDP, CDP, MQTT, Syslog, Zeroconf

Expansion / Connectivity

Ports LAN/power - RJ-45

Supported Memory Cards microSD Card, microSDHC Card, microSDXC Card

Miscellaneous

Compliant Standards PVC-free, BFR-free, CFR free, IEEE 802.3af, IEEE 802.3at, ICES-3(A)/NMB-3(A), EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 B Class A, ICES-003 Class A, VCCI Class A, KS C 9835, KS C 9832 Class A, RCM, AS/NZS CISPR 32 Class A, IEC/EN/UL 62368-1, IEC 60068-2, IEC/EN 60529 IP42, IEC/EN 62262 IK08, NIST SP500-267

Colour White, NCS S 1002-B

Power

Power Requirements PoE Plus Class 2

Power Device 3.6 Watt

Software / System Requirements

Software Included AXIS Object Analytics, AXIS Video Motion Detection, Windows decoder 1-user licence

Manufacturer Warranty

Service & Support Limited warranty - 5 years

Environmental Parameters

Min Operating Temperature 0 °C

Max Operating Temperature 45 °C

Relative Humidity (operating) 10 - 85% RH (non-condensing)
