AXIS

AXIS M3215-LVE W/ DLPU FORENSIC WDR LIGHTFINDE

Name: AXIS M3215-LVE W/ DLPU FORENSIC WDR LIGHTFINDE
Brand: AXIS
SKU: 1TSECSPD-004949
Price: 652.9 GBP
Availability: InStock

SKU

1TSECSPD-004949

Manufacture#: 02371-001

£544.08

£652.90 inc VAT

Checking delivery…

Product details

Network surveillance camera
dome
outdoor
vandal / waterproof

View full product specification

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

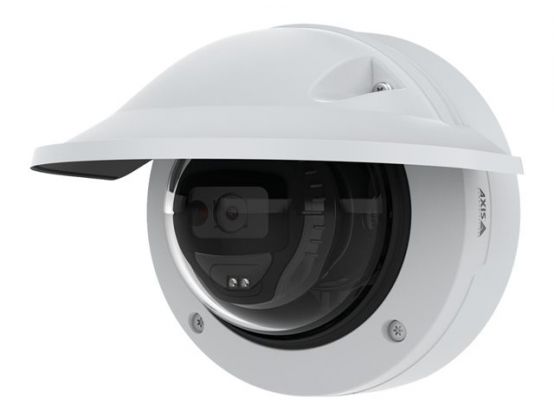

AXIS M3215-LVE
Network surveillance camera
dome
outdoor
vandal / waterproof
colour (Day&Night)
2 MP
1920 x 1080
fixed iris
fixed focal
audio
LAN 10/100
H.264, MPEG-4 Part 10, H.265, MPEG-H Part 2, MJPEG, HEVC, AVC
DC 12 V / PoE Class 3

Overview

This cost-effective fixed focal dome delivers excellent image quality under any light conditions. Built on ARTPEC-8, it offers support for advanced analytics based on deep learning on the edge.

Specification

Product Description AXIS M3215-LVE - network surveillance camera - dome

Device Type Network surveillance camera - fixed - dome - outdoor - vandal / waterproof

Audio Yes: two-way audio via edge-to-edge technology, built-in microphone

Dimensions (WxDxH) 14.9 cm x 14.9 cm x 10.2 cm

Weight 783 g

Colour White, NCS S 1002-B

Connectivity Technology Wired

Camera Colour - Day&Night

Max Resolution 1920 x 1080

Frame Rate (max) 30 frames per second

Motion Detection Yes

Optical Sensor Type PS RGB CMOS - 1/2.9" - 2 MP

Minimum Illumination 0.14 lux - colour - F2.0 - 50 IRE - Forensic WDR and Lightfinder ¦ 0 lux - B&W - F2.0 - 50 IRE - Forensic WDR and Lightfinder ¦ 0 lux - IR

Focal Length Control Fixed focal

Focal Length 3.1 mm

Focus Adjustment (min distance 1 m)

Lens Iris F/2.0 - fixed iris

Panning Range (degree) -190 to +190

Tilting Range (degree) -10 to +80

Interfaces Ethernet 10Base-T/100Base-TX

Voltage DC 12 V / PoE Class 3

Features IR Corrected lens, infrared-cut filter, Forensic WDR, -190° / +190° rotation, deep learning processing unit (DLPU), Zipstream technology, Adaptive Bitrate (ABR), Variable Bitrate (VBR), Multi-Bitrate (MBR), low latency mode, digital PTZ function, saturation control, contrast control, brightness control, sharpness control, white balance, defogging, tone mapping, exposure mode, exposure zone, barrel distortion correction, compression, 180° image rotation, 270° image rotation, 90° image rotation, image mirror, dynamic text overlay, image overlay, polygon privacy mask, bit rate control, network speaker pairing, auto gain control, IP address filtering, HTTPs encryption, user access log, centralised certificate management, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Axis device ID, Axis Edge Vault, night shift, VoIP support, day shift, video streaming indicator, text overlay, Pixel Counter Support, cross line detection, human detection, Vehicle Detection, plastic housing, OptimizedIR, secure boot, signed firmware

Manufacturer Warranty 5-year warranty

Environmental Parameters (operating) -40 °C - 50 °C; 10 - 100% RH (condensing) relative humidity

General

Device Type Network surveillance camera

Audio Support Yes: two-way audio via edge-to-edge technology, built-in microphone

Audio Formats AAC, G.711, G.726, LPCM, OPUS

Form Factor Dome

Connectivity Technology Wired

Width 14.9 cm

Depth 14.9 cm

Height 10.2 cm

Weight 783 g

Localisation English, German, French, Spanish, Italian, Russian, Chinese (simplified), Japanese, Korean, Portuguese, Polish, Chinese (traditional) / Argentina, Australia, United Kingdom, China, Europe, Japan, Brazil, United States

Camera

Type Colour - Day&Night - fixed - outdoor - vandal / waterproof

Digital Video Format H.264, MPEG-4 Part 10, H.265, MPEG-H Part 2, MJPEG, HEVC, AVC

Max Digital Video Resolution 1920 x 1080

Motion Detection Yes

Exposure Range 1/37000 sec - 2 sec

Minimum Illumination 0.14 lux - colour - F2.0 - 50 IRE - Forensic WDR and Lightfinder ¦ 0 lux - B&W - F2.0 - 50 IRE - Forensic WDR and Lightfinder ¦ 0 lux - IR

Infrared LEDs Yes

Infrared Distance 30 m

Digital Video Capture Resolution 1920 x 1080, 160 x 90

Frame Rate (max) 30 frames per second

RAM 1024 MB

Flash Memory 8192 MB

Image Sensor

Type 2 MP PS RGB CMOS 1/2.9"

Lens Construction

Type Fixed focal

Focal Length 3.1 mm

Lens Iris F/2.0 fixed iris

Min Focus Distance 1 m

Horizontal Field of View (degree) 101

Vertical Field of View (degree) 55

Panning

Range (degree) -190 to +190

Tilting

Range (degree) -10 to +80

Interfaces

Network Interface Ethernet 10Base-T/100Base-TX

Network Protocols EAP, TLS, IPv4, IPv6, USGv6, ICMP, HTTP, HTTPS, QOS, FTP, SFTP, CIFS, SMB, SMTP, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP/IP, UDP/IP, IGMP, IGMPv2, IGMPv3, DHCP, ARP, SOCKS, SSH, SIP, LLDP, CDP, MQTT, Syslog, Zeroconf

Alarm Inputs Qty 1

Alarm Outputs Qty 1

Expansion / Connectivity

Ports LAN/power - RJ-45 ¦ Audio line-in/microphone - 3.5 mm jack ¦ Digital input/output - terminal block

Supported Memory Cards microSD Card, microSDHC Card, microSDXC Card

Miscellaneous

Included Accessories Mounting bracket, drill hole template, Resitorx TR20 screw bit, terminal block connectors, cable gaskets, connector guard, weathershield, sunshield

Compliant Standards IEEE 802.1x, BFR-free, CFR free, IEEE 802.3af, IEEE 802.3at, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2, FCC Part 15 B Class A, ICES-3(A)/NMB-3(A), KCC KN35, KN32 Class A, AS/NZS CISPR 32 Class A, RCM, VCCI Class A, IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, IEC 62471, IS 13252, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, NEMA Type 4X, IEC/EN 62262 IK10, NEMA TS-2 (2.2.7-2.2.9), NIST SP500-267, EAL 4, PVC-free

Colour White, NCS S 1002-B

Power

Power Requirements DC 12 V / PoE Class 3

Power Device 4.8 Watt

Software / System Requirements

Software Included Windows decoder 1-user licence, AXIS Companion, AXIS Camera Station

Manufacturer Warranty

Service & Support Limited warranty - 5 years

Environmental Parameters

Min Operating Temperature -40 °C

Max Operating Temperature 50 °C

Relative Humidity (operating) 10 - 100% RH (condensing)
