Name: AXIS P3935-LR M12 BULK 10P 1080P FEMALE M12 D-CODED CONNEC
Brand: AXIS
SKU: 1TSECSPD-003736
Price: 5292.1 GBP
Availability: InStock

Overview

Main features

AXIS P3935-LR
Network surveillance camera
pan / tilt
vandal-proof
colour (Day&Night)
1920 x 1080
M12 mount
fixed iris
fixed focal
audio
MPEG-4, MJPEG, H.264, AVC, HEVC, H.265
PoE Class 2 (pack of 10)

Overview

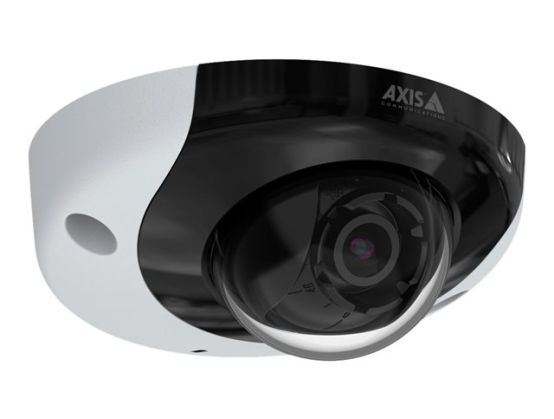

AXIS P3935-LR is specially designed for surveillance onboard vehicles and rolling stock such as trains, buses, and emergency vehicles. This robust, vandal-resistant camera offers improved imaging, IR and microphone, enhanced security features, and extended capabilities for analytics.

Specification

Product Description AXIS P3935-LR - network surveillance camera

Device Type Network surveillance camera - pan / tilt - vandal-proof

Packaged Quantity 10 (specifications are for single item)

Audio Yes: built-in microphone

Dimensions (WxDxH) 11 cm x 11 cm x 4.94 cm

Weight 410 g

Connectivity Technology Wired

Camera Colour - Day&Night

Max Resolution 1920 x 1080

Frame Rate (max) 45 frames per second

Motion Detection Yes

Optical Sensor Type RGB CMOS - 1/2.9"

Minimum Illumination 0.06 lux - colour - F1.6 - 30 IRE ¦ 0.12 lux - colour - F1.6 - 50 IRE ¦ 0.01 lux - B&W - F1.6 - 30 IRE ¦ 0.02 lux - B&W - F1.6 - 50 IRE ¦ 0 lux - IR

Focal Length Control Fixed focal

Focal Length 2.8 mm

Lens Mounting M12 mount

Lens Iris F/1.6 - fixed iris

Panning Range (degree) -30 to +30

Tilting Range (degree) 15 to 90

Voltage PoE Class 2

Features Sharpness control, white balance, progressive scanning, brightness control, contrast control, image mirror, Privacy Mask Function, Lightfinder technology, digital PTZ function, Variable Bitrate (VBR), Defog, Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, image overlay, exposure control, infrared-cut filter, Forensic WDR, electronic image stabilisation, Corridor mode, ONVIF (Profile T) support, Adaptive Bitrate (ABR)

Manufacturer Warranty 3-year warranty

Environmental Parameters (operating) -40 °C - 55 °C; 10 - 95% (non-condensing) relative humidity

General

Packaged Quantity 10 (specifications are for single item)

Device Type Network surveillance camera

Audio Support Yes: built-in microphone

Audio Formats PCM, G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS

Connectivity Technology Wired

Width 11 cm

Depth 11 cm

Height 4.94 cm

Weight 410 g

Camera

Type Colour - Day&Night - pan / tilt - vandal-proof

Digital Video Format MPEG-4, MJPEG, H.264, AVC, HEVC, H.265

Max Digital Video Resolution 1920 x 1080

Motion Detection Yes

Exposure Range 2 sec - 1/33500 sec

Minimum Illumination 0.06 lux - colour - F1.6 - 30 IRE ¦ 0.12 lux - colour - F1.6 - 50 IRE ¦ 0.01 lux - B&W - F1.6 - 30 IRE ¦ 0.02 lux - B&W - F1.6 - 50 IRE ¦ 0 lux - IR

Infrared LEDs Yes

Video Capture 1920 x 1080 @ 30 fps ¦ 1280 x 960 @ 45 fps

RAM 1 GB

Flash Memory 512 MB

Features Sharpness control, white balance, progressive scanning, brightness control, contrast control, image mirror, Privacy Mask Function, Lightfinder technology, digital PTZ function, Variable Bitrate (VBR), Defog, Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, image overlay, exposure control, infrared-cut filter, Forensic WDR, electronic image stabilisation, Corridor mode, ONVIF (Profile T) support, Adaptive Bitrate (ABR)

Image Sensor

Type RGB CMOS 1/2.9"

Lens Construction

Type M12 mount - fixed focal

Focal Length 2.8 mm

Lens Iris F/1.6 fixed iris

Horizontal Field of View (degree) 110

Vertical Field of View (degree) 62

Panning

Range (degree) -30 to +30

Tilting

Range (degree) 15 to 90

Interfaces

Network Protocols DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SRTP, EAP, SFTP, LLDP, USGv6, MQTT

Expansion / Connectivity

Ports LAN/power - M12 ¦ Audio line-in/microphone

Supported Memory Cards microSD Card, microSDHC Card, microSDXC Card

Miscellaneous

Included Accessories Drill hole template, lens tool, Resistorx L-key

Compliant Standards EN 61000-6-1, EN 61000-6-2, IEC 60068-2-27, FCC Part 15 B Class A, IEC 60068-2-64, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-78, EN 50121-4, IEC 62236-4, VCCI Class A, RCM, EN 50121-3-2, EN 50498, NFPA 130, KN35, EN 50155, NEMA250 Type 4X, AS/NZS CISPR 32 Class A, EN 45545, EN 55032 Class A, KCC KN32 Class A, IEEE 802.3af, IEEE 802.3at, IEC 60721-3-5 Class 5M3, CAN/CSA-C22.2 No. 62368-1, EN 55035, IEC/EN/UL 62368-1, IEC/EN 60529 IP66, IEEE 802.1x, NIST SP500-267, ICES-3(A)/NMB-3(A), IEC/EN 62262 IK10, UN ECE R118, IEC/EN 61373 Category 1 Class B, IEC/EN 60529 IP67, EN 50155 Class OT2/ST2 (2007 Class TX), ECE-R10 Rev.5 (E approval)

Power

Power Requirements PoE Class 2

Power Device 6.4 Watt

Software / System Requirements

Software Included Windows decoder 1-user licence

Manufacturer Warranty

Service & Support Limited warranty - 3 years

Environmental Parameters

Min Operating Temperature -40 °C

Max Operating Temperature 55 °C

Relative Humidity (operating) 10 - 95% (non-condensing)
