AXIS T8127 60 W Splitter 12/24 V DC - PoE splitter - 54 Watt - for AXIS P1214, P1365, P5514, P5515, P5515 50, P5515 60, Q1635, Q1941, Q6042, Q6045, V5914

Name: AXIS T8127 60 W Splitter 12/24 V DC - PoE splitter - 54 Watt - for AXIS P1214, P1365, P5514, P5515, P5515 50, P5515 60, Q1635, Q1941, Q6042, Q6045, V5914
Brand: AXIS
SKU: 1TCAVCBA-001975
Price: 143.35 GBP
Availability: OutOfStock

SKU

1TCAVCBA-001975

Manufacture#: 5500-001

£119.46

£143.35 inc VAT

Checking delivery…

Product details

PoE splitter
54 Watt
for AXIS P1214, P1365, P5514, P5515, P5515 50, P5515 60, Q1635, Q1941, Q6042, Q6045, V5914

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

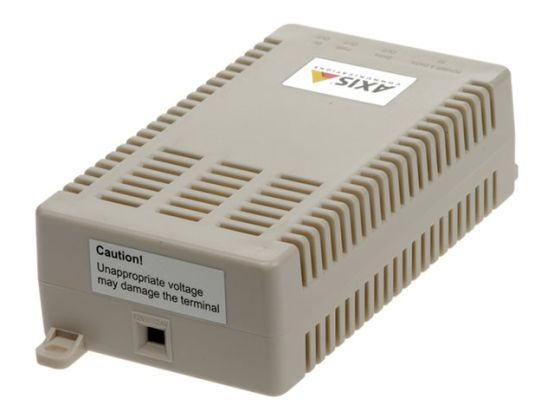

AXIS T8127 60 W Splitter 12/24 V DC
PoE splitter
54 Watt
for AXIS P1214, P1365, P5514, P5515, P5515 50, P5515 60, Q1635, Q1941, Q6042, Q6045, V5914

Overview

AXIS T8127 60 W Splitter 12/24 V DC enables Axis' network products and accessories, such as Axis' illuminators, media converters etc. to receive 12 or 24 V DC with up to 4.5A. The splitter can be powered from any Axis midspan or PoE switch. AXIS T8127 offers an easy, fast and cost-effective solution compared with adding a power supply to your system.

Specification

Product Description AXIS T8127 60 W Splitter 12/24 V DC - PoE splitter - 54 Watt

Device Type PoE splitter - external

Weight 285 g

Output Voltage 12 / 24 V

Power Capacity 54 Watt

Input Connectors RJ-45

Output connectors 1 x power DC jack

Dimensions (WxDxH) 7.3 cm x 13 cm x 3.8 cm

Manufacturer Warranty 3-year warranty

Designed For AXIS F34, F41, F44, M2014, P1204, P1214, P1224, P1353, P1354, P1355, P1357, P1365, P5414, P5415, P5514, P5515, P5515 50, P5515 60, P5544 50, P5544 60, P8524, P8535, Q1604, Q1614, Q1615, Q1635, Q1755, Q1765, Q1775, Q1922, Q1931, Q1932, Q1941, Q2901, Q6032, Q6035, Q6042, Q6044, Q6045, V5914, V5915

General

Device Type PoE splitter - external

Power Device

Input Connectors RJ-45

Power Output Connectors Details 1 x power DC jack

Output Voltage 12 / 24 V

Power Capacity 54 Watt

Expansion / Connectivity

Interfaces 1 x Gigabit LAN - RJ-45

Miscellaneous

Compliant Standards EN55024, EN55022 Class B, ICES-003 Class B, FCC Part 15 B, RoHS, WEEE, VCCI Class B

Manufacturer Warranty

Service & Support Limited warranty - 3 years

Environmental Parameters

Min Operating Temperature 0 °C

Max Operating Temperature 40 °C

Humidity Range Operating 0 - 90% (non-condensing)

Dimensions & Weight

Width 7.3 cm

Depth 13 cm

Height 3.8 cm

Weight 285 g

Compatibility Information

Designed For AXIS F34 Main Unit, F34 Surveillance System, F41 Main Unit, F44 Main Unit, P1214-E, P1224-E Network Camera, P1365 Mk II Network Camera, P1365 Mk II Network Camera (Barebone), P1365 Network Camera, P1365 Network Camera (Barebone), P1365-E Mk II Network Camera, P1365-E Network Camera, P5514 PTZ Dome Network Camera 50Hz, P5514 PTZ Dome Network Camera 60Hz, P5514-E PTZ Dome Network Camera 50Hz, P5514-E PTZ Dome Network Camera 60Hz, P5515 50Hz, P5515 60Hz, P5515-E 50Hz, P5515-E 60Hz, P8524 Network Camera (Imperial), P8524 Network Camera (Metric), P8535 Imperial, P8535 Metric, Q1615 Network Camera, Q1615 Network Camera (Barebone), Q1615-E Network Camera, Q1635 Network Camera, Q1635 Network Camera (Barebone), Q1635-E, Q1635-E Network Camera, Q1765-LE PT Mount Network Camera, Q1775 Network Camera, Q1775-E Fixed Network Camera, Q1922, Q1931-E PT Mount, Q1932-E Thermal Network Camera (10mm 30 fps), Q1932-E Thermal Network Camera (10mm 8.3 fps), Q1932-E Thermal Network Camera (19mm 30 fps), Q1932-E Thermal Network Camera (19mm 8.3 fps), Q1932-E Thermal Network Camera (35mm 30 fps), Q1932-E Thermal Network Camera (35mm 8.3 fps), Q1932-E Thermal Network Camera (60mm 30 fps), Q1932-E Thermal Network Camera (60mm 8.3 fps), Q1941-E, Q2901-E PT Mount Temperature Alarm Camera (19mm), Q2901-E PT Mount Temperature Alarm Camera (9mm), Q2901-E Temperature Alarm Camera (19mm), Q2901-E Temperature Alarm Camera (9mm), Q6042 Mk II, Q6042-E Mk II, Q6044-S PTZ Dome Network Camera 50Hz, Q6045 Mk II PTZ Dome Network Camera 50Hz, Q6045 Mk II PTZ Dome Network Camera 60Hz, Q6045-C Mk II PTZ Dome Network Camera 50Hz, Q6045-C Mk II PTZ Dome Network Camera 60Hz, Q6045-E Mk II PTZ Dome Network Camera, Q6045-E PTZ Dome Network Camera 60Hz, Q6045-S Mk II PTZ Dome Network Camera 50Hz, Q6045-S Mk II PTZ Dome Network Camera 60Hz, V5914 PTZ Network Camera 50Hz, V5914 PTZ Network Camera 60Hz, V5915 PTZ Network Camera 50Hz, V5915 PTZ Network Camera 60Hz
