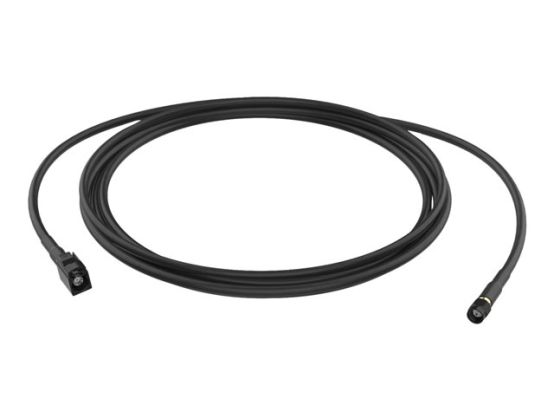

AXIS TU6004-E CABLE 30M .
Checking delivery…
Product details
Network cable
SMA to FAKRA connector
30 m
5 mm
Payment options available at checkout
Main features
AXIS
Network cable
SMA to FAKRA connector
30 m
5 mm
indoor / outdoor
black
for AXIS F2105-RE, F2115-R, F2135-RE, F4105-LRE, F7225-RE, F9104-B, F9111, F9114, F9114-B
Overview
This flexible and robust indoor/outdoor cable is compatible with AXIS F91 main units, AXIS F21 sensor units, AXIS F4105-LRE Dome Sensor, and AXIS F7225-RE Pinhole Sensor. With a 40 mm (1.6 in) bending radius, this high-speed data cable offers a high bandwidth capability to minimize latency between the sensor unit and main unit.
Product Description
AXIS network cable - 30 m - black
Type
Network cable
Features
Indoor / outdoor, bending radius 40mm
Length
30 m
Diameter
5 mm
Connector
SMA
Connector (Second End)
FAKRA connector
Colour
Black
Manufacturer Warranty
3-year warranty
Designed For
AXIS F2105-RE, F2115-R, F2135-RE, F4105-LRE, F7225-RE, F9104-B, F9111, F9114, F9114-B
General
Network Cable Type
Network cable
Impedance
50 Ohm
Features
Indoor / outdoor, bending radius 40mm
Length
30 m
Diameter
5 mm
Weight
1.14 kg
Colour
Black
Connectivity
Connector
SMA
Connector (Second End)
FAKRA connector
Miscellaneous
Compliant Standards
UL, IP67, IP66, IP6K9K, UN ECE R118, CL2, E335585-T - up to 3 GHz
Manufacturer Warranty
Service & Support
3-year warranty
Environmental Parameters
Min Operating Temperature
-40 °C
Max Operating Temperature
75 °C
Compatibility Information
Designed For
AXIS F2105-RE, F2115-R, F2135-RE, F4105-LRE, F7225-RE, F9104-B, F9111, F9114, F9114-B
