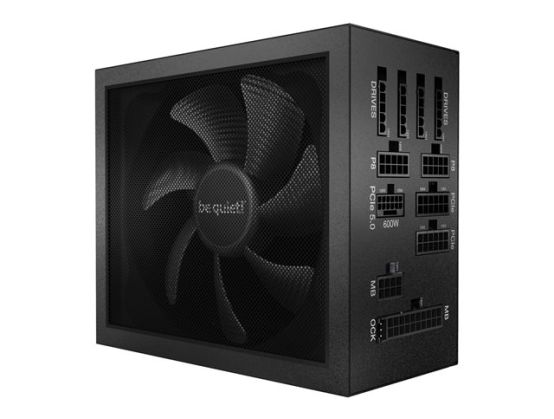

The Dark Power 13 1000 Watt offers 80 PLUS Titanium efficiency, virtually inaudible operation and ATX 3.0 compatibility for full compatibility with next-generation GPUs.
Product Descriptionbe quiet! Dark Power 13 - power supply - 1000 Watt
Device TypePower supply - active Power Factor Correction (PFC) - internal
Specification ComplianceATX12V 3.0/ EPS12V 2.92
80 PLUS Certification80 PLUS Titanium
Weight2.03 kg
Input VoltageAC 100-240 V
Output Voltage+3.3, +5, ±12 V
Power Capacity1000 Watt
Output Current+3.3V - 25 A ¦ +5V - 25 A ¦ +12V1 - 32 A ¦ +12V2 - 32 A ¦ +12V3 - 40 A ¦ +12V4 - 40 A ¦ -12V - 0.5 A ¦ +5VSB - 3 A
Output connectors1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 4+4 pin ¦ 1 x power P8 ¦ 1 x 12VHPWR ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 13 x 15 pin Serial ATA power ¦ 3 x Parallel ATA
Modular Cable ManagementYes
Cooling System135 mm fan
Included AccessoriesThumbscrews, screws, cable ties, overclock slot bracket with switch, overclock jumper
ColourBlack
Dimensions (WxDxH)15 cm x 17.5 cm x 8.6 cm
Environmental StandardsENERGY STAR
Manufacturer Warranty10 years warranty
Extended Specification
General
Device TypePower supply - active Power Factor Correction (PFC) - internal
Specification ComplianceATX12V 3.0/ EPS12V 2.92
PSU Form FactorATX
ColourBlack
Power Device
Input VoltageAC 100-240 V
Frequency Required50 - 60 Hz
Power Output Connectors Details1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 4+4 pin ¦ 1 x power P8 ¦ 1 x 12VHPWR ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 13 x 15 pin Serial ATA power ¦ 3 x Parallel ATA
Output Voltage+3.3, +5, ±12 V
Power Capacity1000 Watt
Output Current+3.3V - 25 A ¦ +5V - 25 A ¦ +12V1 - 32 A ¦ +12V2 - 32 A ¦ +12V3 - 40 A ¦ +12V4 - 40 A ¦ -12V - 0.5 A ¦ +5VSB - 3 A
Efficiency72% at 2% Load (230 VAC), 90.7% at 10% Load (230 VAC), 94.8% at 20% Load (230 VAC), 95.2% at 50% Load (230 VAC), 93.3% at 100% Load (230VAC)
Power Factor (PF)0.98
Modular Cable ManagementYes
80 PLUS Certification80 PLUS Titanium
Miscellaneous
Included AccessoriesThumbscrews, screws, cable ties, overclock slot bracket with switch, overclock jumper
Cooling System135 mm fan
FeaturesSilent Wings, Modern Standby, over current protection, overheat protection, overpower protection, short-circuit protection, over voltage protection, undervoltage protection, Surge & Inrush Protection (SIP), LLC Full Bridge Topology, Active Rectifier, Synchronous Rectifier (SR) technology, DC-DC technology, Full Bridge topology
