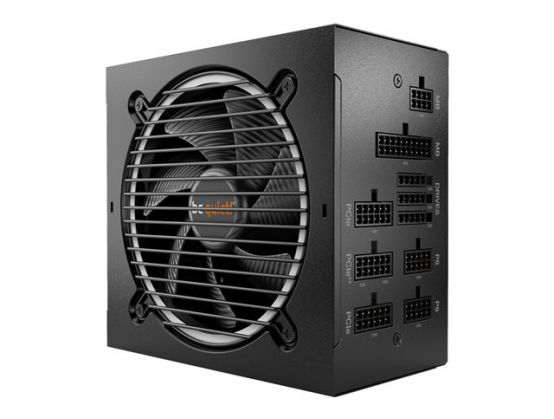

Product Descriptionbe quiet! Pure Power 11 FM - power supply - 1000 Watt
Device TypePower supply - active Power Factor Correction (PFC) - internal
Specification ComplianceATX12V 2.52/ EPS12V 2.92
80 PLUS Certification80 PLUS Gold
Weight1.89 kg
Input VoltageAC 100-240 V
Output Voltage+3.3, +5, ±12 V
Power Capacity1000 Watt
Output Current+3.3V - 22 A ¦ +5V - 22 A ¦ +12V1 - 46 A ¦ +12V2 - 42 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A
Output connectors1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin +12V with detachable 4 pin section ¦ 6 x 8 pin PCI Express power with detachable 2 pin section ¦ 2 x 4 PIN internal power ¦ 10 x 15 pin Serial ATA power ¦ 1 x 4 PIN mini-power connector ¦ 1 x power 8 pin +12V
Modular Cable ManagementYes
Cooling System120 mm fan
Included AccessoriesScrews, cable ties
ColourBlack
Dimensions (WxDxH)15 cm x 16 cm x 8.6 cm
Environmental StandardsENERGY STAR
Manufacturer Warranty5-year warranty
Extended Specification
General
Device TypePower supply - active Power Factor Correction (PFC) - internal
Specification ComplianceATX12V 2.52/ EPS12V 2.92
PSU Form FactorATX
ColourBlack
Power Device
Input VoltageAC 100-240 V
Frequency Required50 - 60 Hz
Power Output Connectors Details1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin +12V with detachable 4 pin section ¦ 6 x 8 pin PCI Express power with detachable 2 pin section ¦ 2 x 4 PIN internal power ¦ 10 x 15 pin Serial ATA power ¦ 1 x 4 PIN mini-power connector ¦ 1 x power 8 pin +12V
Output Voltage+3.3, +5, ±12 V
Power Capacity1000 Watt
Output Current+3.3V - 22 A ¦ +5V - 22 A ¦ +12V1 - 46 A ¦ +12V2 - 42 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A
Efficiency91.5% at 20% Load (230 VAC), 93% at 50% Load (230 VAC), 90.8% at 100% Load (230 VAC)
Power Factor (PF)0.97
Modular Cable ManagementYes
80 PLUS Certification80 PLUS Gold
Miscellaneous
Included AccessoriesScrews, cable ties
MTBF100,000 hours
Cooling System120 mm fan
FeaturesSleeved cables, over current protection, over voltage protection, undervoltage protection, short-circuit protection, thermal protection, overpower protection, Surge & Inrush Protection (SIP), DC-DC technology, Synchronous Rectifier (SR) technology, LLC resonant converter technology, dual 12V rails, rifle bearing cooling fan, fully modular
