Introducing the Pure Power 12 M, the perfect combination of features and outstanding compatibility.
Power efficient
Full support for PCI-e graphics cards
Exceptionally silent
Advanced stability and voltage regulation: LLC technology
Strong 12V-rails
Modular cables for maximum build flexibility
Power efficientCertified with an outstanding efficiency rating. The compelling benefit is the low power consumption, consequently low costs, and quiet operation.Exceeds all ATX requirementsThe power supply is equipped with native integration and support for powerful GPU's.Massive transient loadsOffers continuous power with 2 independent rails. Even if the graphics card demands excessive power for a short time, the Pure Power 12 M handles power excursions with ease.Silent operationWith a temperature-controlled fan, strike the perfect balance between effective cooling and quietness. Airflow-optimized fan blades reduce turbulence, and provide quiet functionality.Rock-solid stabilityPure power provides perfect voltage regulation and efficiency.Modular cablesThanks to the modular design, all of the unnecessary cables in the system are left outside. Pure Power simplifies cable management and routing for a tidy-looking system.

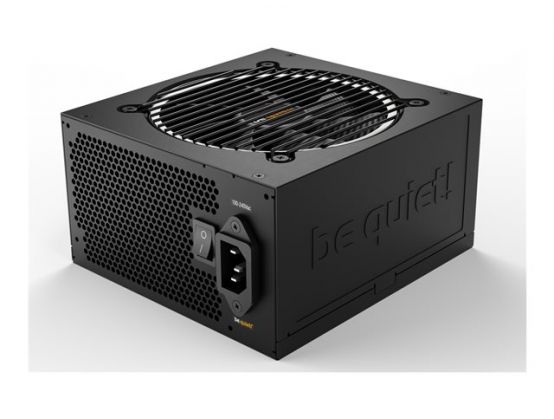

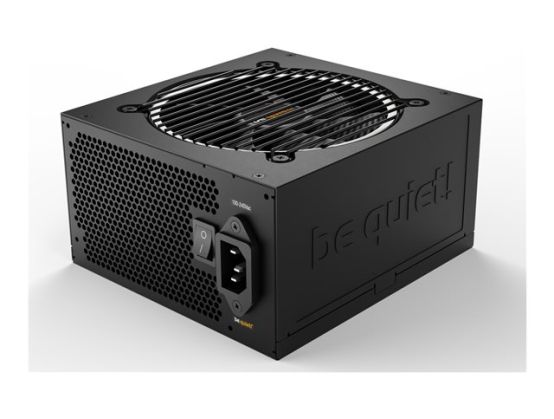

Product Descriptionbe quiet! Pure Power 12 M 550W - power supply - 550 Watt
Device TypePower supply - active Power Factor Correction (PFC) - internal
Specification ComplianceATX12V 3.0/ EPS12V 2.92
80 PLUS Certification80 PLUS Gold
Weight1.45 kg
Input VoltageAC 100-240 V
Output Voltage+3.3, +5, ±12 V
Power Capacity550 Watt
Output Current+3.3V - 20 A ¦ +5V - 20 A ¦ +12V1 - 28 A ¦ +12V2 - 24 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A
Output connectors1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin +12V with detachable 4 pin section ¦ 1 x power 8 pin EPS12V ¦ 1 x 12VHPWR ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 5 x 15 pin Serial ATA power ¦ 2 x 4 PIN internal power
Modular Cable ManagementYes
Cooling System120 mm fan
Included AccessoriesScrews, cable ties
ColourBlack
Dimensions (WxDxH)15 cm x 16 cm x 8.6 cm
Environmental StandardsENERGY STAR
Manufacturer Warranty10 years warranty
Extended Specification
General
Device TypePower supply - active Power Factor Correction (PFC) - internal
Specification ComplianceATX12V 3.0/ EPS12V 2.92
PSU Form FactorATX
ColourBlack
Power Device
Input VoltageAC 100-240 V
Frequency Required50 - 60 Hz
Power Output Connectors Details1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin +12V with detachable 4 pin section ¦ 1 x power 8 pin EPS12V ¦ 1 x 12VHPWR ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 5 x 15 pin Serial ATA power ¦ 2 x 4 PIN internal power
Output Voltage+3.3, +5, ±12 V
Power Capacity550 Watt
Output Current+3.3V - 20 A ¦ +5V - 20 A ¦ +12V1 - 28 A ¦ +12V2 - 24 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A
Efficiency90.9% at 100% Load, 92.8% at 50% Load (230 VAC), 70.4% at 2% Load (230 VAC), 85.2% at 10% Load (230 VAC), 89.3% at 20% Load (230 VAC)
Power Factor (PF)0.98
Modular Cable ManagementYes
80 PLUS Certification80 PLUS Gold
Miscellaneous
Included AccessoriesScrews, cable ties
MTBF100,000 hours
Cooling System120 mm fan
FeaturesOver current protection, over voltage protection, overpower protection, undervoltage protection, dual 12V rails, short-circuit protection, thermal protection, surge & inrush protection, DC-DC technology, rifle bearing cooling fan, Synchronous Rectifier (SR) technology, fully modular, LLC resonant converter technology, Modern Standby compatible
Compliant StandardsTUV, BSMI, CB, CCC, FCC, RoHS, WEEE, cTUVus, ERP, RCM, cRUus, CU, UKCA, Triman, Energy Star 8.0
