Specially designed by be quiet! with the cost-conscious PC builder in mind - the System Power 9, featuring true be quiet! reliability with two 12V-rails for rock-solid voltage stability. System Power 9's combination of power and quietness for a PSU of its class and efficiency is far beyond ordinary, making it possible for you to build cost-effective and reliable systems - a key differentiator in an era of nearly identical commodities.

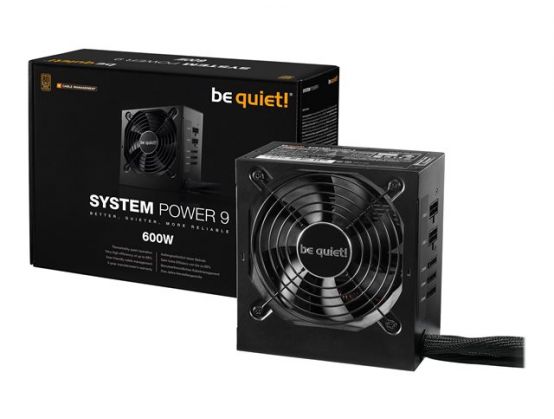

Product Descriptionbe quiet! System Power 9 600W CM - power supply - 600 Watt
Device TypePower supply - active Power Factor Correction (PFC) - internal
Specification ComplianceATX12V 2.51/ EPS12V 2.92
80 PLUS Certification80 PLUS Bronze
LocalisationEurope
Input VoltageAC 200-240 V
Output Voltage+3.3, +5, ±12 V
Power Capacity600 Watt
Output Current+3.3V - 24 A ¦ +5V - 15 A ¦ +12V1 - 28 A ¦ +12V2 - 22 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A
Output connectors1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 10 x 15 pin Serial ATA power ¦ 2 x 4 PIN internal power
Modular Cable ManagementYes
Cooling System120 mm fan
Dimensions (WxDxH)15 cm x 14 cm x 8.6 cm
Environmental StandardsENERGY STAR
Manufacturer Warranty3-year warranty
Extended Specification
General
Device TypePower supply - active Power Factor Correction (PFC) - internal
Specification ComplianceATX12V 2.51/ EPS12V 2.92
PSU Form FactorATX
LocalisationEurope
Power Device
Input VoltageAC 200-240 V
Frequency Required50 Hz
Power Output Connectors Details1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 10 x 15 pin Serial ATA power ¦ 2 x 4 PIN internal power
Output Voltage+3.3, +5, ±12 V
Power Capacity600 Watt
Output Current+3.3V - 24 A ¦ +5V - 15 A ¦ +12V1 - 28 A ¦ +12V2 - 22 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A
Efficiency89%
Power Factor (PF)0.95
Modular Cable ManagementYes
80 PLUS Certification80 PLUS Bronze
Miscellaneous
MTBF100,000 hours
Cooling System120 mm fan
FeaturesDual 12V rails, DC-DC technology, Multi-GPU Technologies Supported, temperature controlled fan, semi-modular, over current protection, over voltage protection, overpower protection, overheat protection, undervoltage protection, short-circuit protection
