ABS cabinet loudspeaker 6 W with VC
Manufacture#: F.01U.329.934
Checking delivery…
Product details
Speaker
for PA system
6 Watt
white, RAL 9003
Payment options available at checkout
Main features
Bosch LB7-UC06V
Speaker
for PA system
6 Watt
white, RAL 9003
Overview

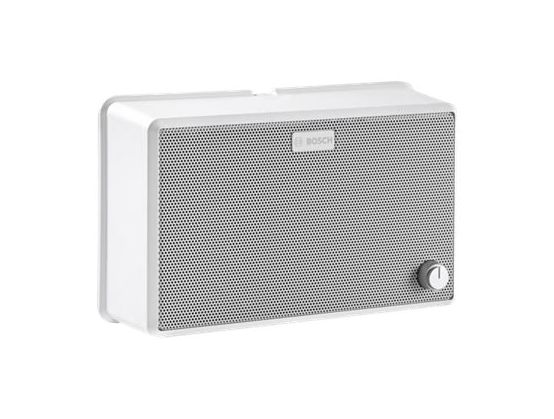

The ABS Cabinet loudspeaker 6 W is suitable for speech and music reproduction and is applicable for use in voice alarm systems. The ABS rectangular cabinet is made from ABS with a metal grille front and provided with a volume control to adjust the requested volume locally.
Product Description
Bosch LB7-UC06V - speaker - for PA system
Product Type
Speaker - for PA system
Speaker Type
Passive
Continuous Power
6 Watt
Integrated Transformer
70V/100V operation
Colour
White, RAL 9003
Dimensions (WxDxH)
23.4 cm x 8.2 cm x 14.6 cm
Weight
1.1 kg
General
Product Type
Speaker - for PA system
Enclosure Colour
White, RAL 9003
Enclosure Material
Acrylonitrile butadiene styrene (ABS), metal grille
Speaker System
Speaker Type
Passive
Continuous Power
6 Watt
Frequency Response (-10dB)
160 - 20000 Hz
Max Output Level (Max SPL)
102 dB
Sensitivity
94 dB (1W@1m)
Integrated Transformer
70V/100V operation
Coverage
180° x 180°
Recommended Placing
Wall-mountable
Controls
Volume
Detachable Grilles
Yes
Connections
Connector Type
Speakers input (2 pin terminal block)
Miscellaneous
Included Accessories
2x (4 x 38 mm) screws, 2 rubber grommets
Compliant Standards
EN 60065, UL 94 V-0
Dimensions & Weight
Width
23.4 cm
Depth
8.2 cm
Height
14.6 cm
Weight
1.1 kg
Environmental Parameters
Min Operating Temperature
-10 °C
Max Operating Temperature
55 °C
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Operating
0 - 95% RH
