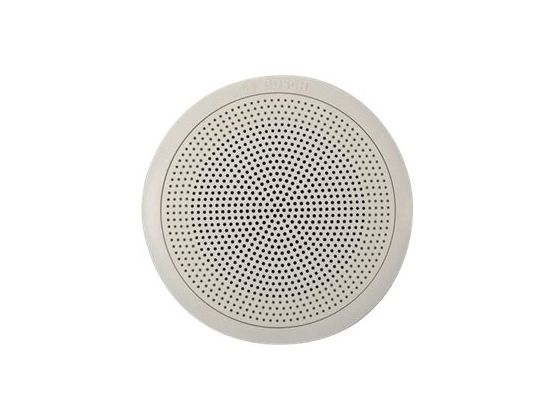

5in 6w ABS Ceiling Speaker White MOV 160
Manufacture#: F.01U.218.843
Checking delivery…
Product details
Speaker
for PA system
6 Watt
white
Payment options available at checkout
Main features
Bosch LC3-UC06
Speaker
for PA system
6 Watt
white
Overview
The LC3‑UC06 is a general purpose, cost-effective 6 W ceiling loudspeaker, suitable for 100 V connection with power tapping of: 6, 3 and 1.5 watt. The LC3‑UC06‑LZ is a low impedance (4 Ohm) version ceiling loudspeaker for direct connection to a low impedance amplifier output.
Product Description
Bosch LC3-UC06 - speaker - for PA system
Product Type
Speaker - for PA system
Speaker Type
Passive
Continuous Power
6 Watt
Peak Power
9 Watt
Integrated Transformer
100V operation
Colour
White
Dimensions (WxDxH)
5.9 cm
Dimensions - Diameter
18 cm
Weight
475 g
General
Product Type
Speaker - for PA system
Enclosure Colour
White
Enclosure Material
ABS plastic
Speaker System
Speaker Type
Passive
Continuous Power
6 Watt
Peak Power
9 Watt
Frequency Response (-10dB)
90 - 20000 Hz
Integrated Transformer
100V operation
Recommended Placing
In-ceiling mounted
Miscellaneous
Compliant Standards
EN 60065
Dimensions & Weight
Diameter
18 cm
Depth
5.9 cm
Weight
475 g
Cutout & Mounting Dimensions
Diameter
16.7 cm
Environmental Parameters
Min Operating Temperature
-25 °C
Max Operating Temperature
55 °C
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Operating
95%
