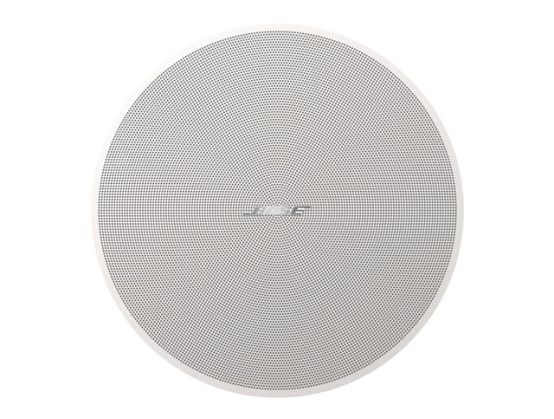

Bose DesignMax DM5C - speakers
Manufacture#: 829683-0210
Checking delivery…
Product details
Speakers
50 Watt
2-way
coaxial
Payment options available at checkout
Main features
Bose DesignMax DM5C
Speakers
50 Watt
2-way
coaxial
arctic white, RAL 9003
Overview
DesignMax loudspeakers bring outstanding audio and aesthetics to any commercial space. It's easy to create tailored sound solutions and deliver instantly impressive sound. DesignMax loudspeakers provide full and consistent coverage - and blend into any room design.
Impressive sound
Reduce installation time
Impressive sound
Deliver instantly impressive sound with custom Bose drivers - no DSP or EQ required.
Reduce installation time
With the mounting system, which also reduces strain, hassle, and the chance of product damage.
Product Description
Bose DesignMax DM5C - speakers
Product Type
Speakers
System Components
2 speakers
Speaker Type
Coaxial - 2-way - passive
Continuous Power
50 Watt
Peak Power
200 Watt
Frequency Response
60 - 20000 Hz
Nominal Impedance
8 Ohm
Integrated Transformer
70V/100V or 8 Ohm operation
Speaker Details
Speaker - 50 Watt - 60 - 20000 Hz - 8 Ohm - 2-way - passive
Colour
Arctic white, RAL 9003
Dimensions (WxDxH)
30.3 cm x 30.3 cm x 20.8 cm
General
Product Type
Speakers
Enclosure Colour
Arctic white, RAL 9003
Enclosure Material
Plastic
Design Features
Paintable
Speaker System
System Components
2 speakers
Speaker Type
Coaxial - 2-way - passive
Continuous Power
50 Watt
Peak Power
200 Watt
Frequency Response
60 - 20000 Hz
Frequency Response (-3dB)
70 - 17000 Hz
Nominal Impedance
8 Ohm
Max Output Level (Max SPL)
105 dB
Sensitivity
88 dB
Crossover Frequency
1500 Hz
Integrated Transformer
70V/100V or 8 Ohm operation
Recommended Placing
In-ceiling mounted
Speaker System Details
Speaker Details
Speaker - 50 Watt - 60 - 20000 Hz CFR - 8 Ohm - 2-way - passive
Driver Details
Speaker: woofer driver - 5.25" ¦ Speaker: tweeter driver - 1" - neodymium
Dimensions & Weight
Width
30.3 cm
Depth
30.3 cm
Height
20.8 cm
Cutout & Mounting Dimensions
Diameter
19.2 cm
