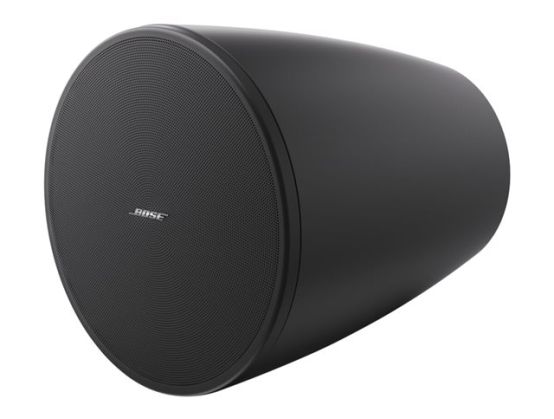

Bose DesignMax DM6PE - speaker
Manufacture#: 841168-0110
Checking delivery…
Product details
Speaker
100 Watt
2-way
coaxial
Payment options available at checkout
Main features
Bose DesignMax DM6PE
Speaker
100 Watt
2-way
coaxial
bose black (pack of 2)
Overview
With a coaxial two-way design, the 125-watt DesignMax DM6PE loudspeaker offers rich lows and clear, intelligible highs - along with premium aesthetics that complement any commercial sound installation. It features a coaxial 6.5-inch woofer and a 1.25-inch tweeter mounted within the Dispersion Alignment system and the DM6PE pendant loudspeaker delivers 62 Hz - 20 kHz. The DM6PE is an IP55 outdoor-rated pendant loudspeaker featuring a recessed single-point suspension system for a sleek, attractive appearance.
Complete any commercial sound installation
Deliver rich lows and clear, intelligible highs with a coaxial two-way design
Ensure a consistent listening experience
Blend with any room design
Install easily with industry-standard accessories
Install DM6PE outside
Provide an open, attractive aesthetic
Product Description
Bose DesignMax DM6PE - speaker
Product Type
Speaker
Packaged Quantity
2 (specifications are for single item)
Protection
Weatherproof, UV radiation resistant
Speaker Type
Coaxial - 2-way - passive
Continuous Power
100 Watt
Peak Power
400 Watt
Frequency Response
62 - 20000 Hz
Nominal Impedance
8 Ohm
Integrated Transformer
70V/100V or 8 Ohm operation
Colour
Bose black
Dimensions (WxDxH)
37.5 cm
Dimensions - Diameter
30.8 cm
Weight
5.7 kg
General
Packaged Quantity
2 (specifications are for single item)
Product Type
Speaker
Protection
Weatherproof, UV radiation resistant
Enclosure Colour
Bose black
Enclosure Material
Plastic
Design Features
Paintable
Speaker System
Speaker Type
Coaxial - 2-way - passive
Continuous Power
100 Watt
Peak Power
400 Watt
Frequency Response
62 - 20000 Hz
Nominal Impedance
8 Ohm
Max Output Level (Max SPL)
110 dB
Sensitivity
89 dB
Crossover Frequency
1700Hz
Integrated Transformer
70V/100V or 8 Ohm operation
Coverage
115° conical
Recommended Placing
Outdoor, pendant
Speaker System Details
Driver Details
Speaker: woofer driver - 6.5" ¦ Speaker: tweeter driver - 1.25" - neodymium
Miscellaneous
Included Accessories
Mounting hardware
Compliant Standards
NFPA 70, IP55, UL 2239, NFPA 90A, UL 1480A
Dimensions & Weight
Diameter
30.8 cm
Depth
37.5 cm
Weight
5.7 kg
