Broadcom

HPE MegaRAID 416i-p - Storage controller - up to 240 physical drives, up to 64 logical drives - 16 Channel - SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) - RAID RAID 0, 1, 5, 6, 10, 50, 60 - PCIe 4.0 x8 - remarketed - for HPE MR416i-o

Name: HPE MegaRAID 416i-p - Storage controller - up to 240 physical drives, up to 64 logical drives - 16 Channel - SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) - RAID RAID 0, 1, 5, 6, 10, 50, 60 - PCIe 4.0 x8 - remarketed - for HPE MR416i-o
Brand: Broadcom
SKU: 1TACCRAC-021296
Price: 2064.82 GBP
Availability: OutOfStock

SKU

1TACCRAC-021296

Manufacture#: P06367R-B21

£1720.68

£2064.82 inc VAT

Checking delivery…

Product details

Storage controller
up to 240 physical drives, up to 64 logical drives
16 Channel
SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe)

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

Broadcom MegaRAID MR416i-p
Storage controller
up to 240 physical drives, up to 64 logical drives
16 Channel
SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe)
RAID RAID 0, 1, 5, 6, 10, 50, 60
PCIe 4.0 x8
remarketed
for HPE MR416i-o

Overview

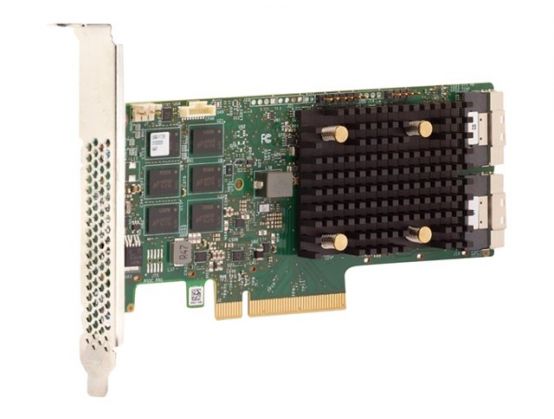

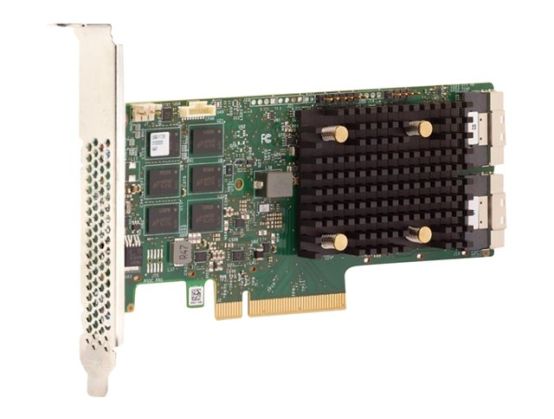

Broadcom MegaRAID MR416i-p - storage controller - up to 240 physical drives, up to 64 logical drives - SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) - PCIe 4.0 x8

Specification

Product Description Broadcom MegaRAID MR416i-p - storage controller - up to 240 physical drives, up to 64 logical drives - SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) - PCIe 4.0 x8

Device Type Storage controller - plug-in card

Bus Type PCIe 4.0 x8

Interface SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe)

Buffer Size 4 GB

Supported Devices Disk array (RAID), solid state drive

Channel Qty 16

Max Storage Devices Qty 240

RAID Level RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60

System Requirements SUSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux, CentOS, Ubuntu, VMware ESXi

Pricing Type Remarketed

Dimensions (WxDxH) 15.7 cm

Weight 146 g

Designed For HPE MR416i-o

General

Device Type Storage controller - plug-in card

Host Bus PCIe 4.0 x8

Storage Controller

Interface SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe)

Buffer Size 4 GB

Supported Devices Disk array (RAID), solid state drive

Channel Qty 16

Max Storage Devices Qty 240

RAID Level RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60

Processor Broadcom SAS3916

Expansion / Connectivity

Interfaces 2 x SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) - Slim SAS x8 (internal)

Connections 1 x PCIe 4.0 x8

Miscellaneous

Features Load Balancing, S.M.A.R.T. support, read ahead caching, write-back caching, configurable stripe size up to 1 MB, global and dedicated hot spare with revertible hot, Universal Backplane Management (UBM) ready, mixed mode (RAID & HBA), Legacy and UEFI boot mode, rebuild, SED key management

Pricing Type Remarketed

Software / System Requirements

Software Included StorCLI, HII (UEFI Human Interface Infrastructure), UEFI System Utilities (storage configuration), MegaRAID Storage Administrator, Redfish (Inventory and Events)

OS Required SUSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux, CentOS, Ubuntu, VMware ESXi

Dimensions & Weight

Depth 15.7 cm

Weight 146 g

Compatibility Information

Designed For HPE MR416i-o
