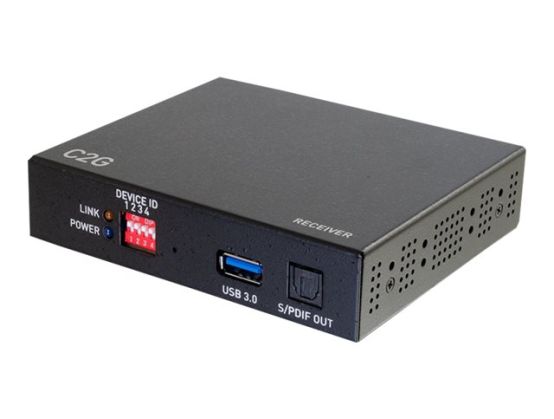

The HDMI over IP Decoder allows HDMI audio/video signals to be extended at up to a 4K resolution via Cat6 or Cat6a cable. The decoder is compatible with the HDMI over IP Encoder (C2G84453) to support multiple configurations and offers the flexibility to support a digital signage system, video wall, point-to-point extension, including multi-view capabilities, and the ability to create scalable audio/video matrix switching to over 600 devices. HDMI over IP solutions are perfect for retail, corporate, security, and education environments.¦The exceptionally low bandwidth requirements of this device combination allows for streaming audio/video content over a local network and over the Internet for distributed installations. The decoder can up-scale lower resolution video signals up to 4K @ 60Hz to be displayed on a 4K monitor. The decoder also accepts H.264/H.265 video streams from other transmitting devices of up to 4K @ 60Hz.¦The device supports PoE (PD) and may be powered by a PoE (PSE) Ethernet Switch.¦Note: When installed in an electrically noisy environment, an STP cable must be used. Also, cross-connection reduces the effective distance depending on the grade of twisted cable used.
- Upscales HDMI output video resolution to 4K @ 60Hz (4:4:4)
- H.264/265 video codec, excellent for LAN and Internet transmission
- High image quality and 200ms latency in low latency mode with H.265
- Supports Multicast, RTSP, RTMP, HLS, FLV and TS
- Supports S/PDIF (Toslink) and stereo audio output
- Stereo audio and directional IR inputs with a Serial RS232 control port
- PoE powered, via PoE (PSE) Ethernet Switch
Connector 1
(1) RJ-45 Female, (1) USB 3.0 A Female
Connector 2
(1) HDMI Female, (1) DB9 Male, (2) 3.5mm Female, (1) Toslink Female
Colour
Black
Warranty
3 Years
