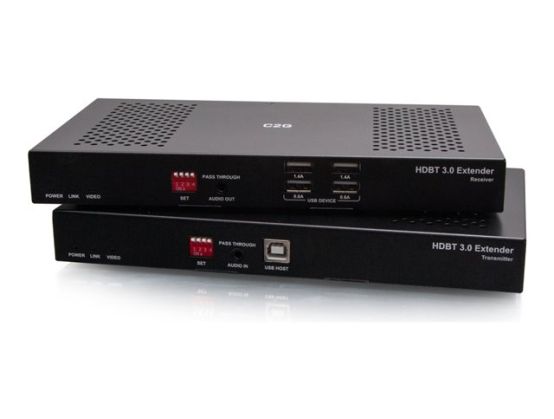

The HDMI HDBaseT + USB-B to A and RS232 over Cat Extender (18Gbps) allows for the extension of a 4K HDMI source up to 328ft to a 4K display without signal loss using a single Cat6a Ethernet cable. This is an ideal solution where USB must also be extended alongside HDMI video and audio to interactive whiteboards and displays or in any installation that goes far beyond the length limitations of standard HDMI and USB cabling.¦This HDMI HDBaseT 3.0 kit supports 5Play features, including the combined delivery of uncompressed ultra-high-definition digital video and audio, Ethernet, control signals, USB 2.0, and up to 100W of power through a single, 100m/328ft Cat6a LAN cable. The uncompressed digital video fully supports 4K 60Hz (4:4:4) HDMI signals and all audio formats in the HDMI 2.0 specification. The Ethernet pass-through transmits 1GB of data. The featured dip switch allows for RS232 pass-through and the added convenience of field firmware updating. USB 2.0 supports streaming cameras, connected peripherals, and storage devices. With one-way Power over HDBaseT (PoH) support, one power adapter connected to the receiver powers both the transmitter and receiver, so no additional power adapter required, allowing for greater flexibility in installations.¦Note: Ensure a solid reliable connection between the 4K HDMI HDBaseT Extender and critical equipment. We suggest using HDMI Cables with gripping connectors that provide greater port retention than standard HDMI connectors.¦Note: Shielded, solid conductor Cat6 or HDBaseT Certified Cat6a network cabling is recommended for applications where the category cable must be coiled, is run near other high-frequency signaling cables, or in high EMI/RFI environments.
- Colour: Black
- Warranty: 5 Years
- Connector 1
- (1) 3.5mm Female
- (1) 3.5mm Female
- (1) DC Power Plug
- (1) HDMI Female
- (1) RJ-45 Female
- (1) USB-B Female
- Connector 2
- (1) 3.5mm Female
- (1) 3.5mm Female
- (1) DC Power Plug
- (1) HDMI Female
- (1) RJ-45 Female
- (4) USB-A Female
- Signal Type:
- HDbT
- HDMI
High-resolution support
Experience clarity with support for 4K 60Hz resolutions, ensuring your video content looks sharp, whether it's detailed graphics or vibrant multimedia presentations.
Advanced audio features
With support for 7.1 channel audio, Dolby Atmos, DTS:X, and more, this extender delivers a rich audio experience, perfect for creating an engaging environment in any setting.
Robust connectivity
Featuring HDMI, USB 2.0, RS232, and HDBaseT interfaces, this extender offers versatile connectivity options for a wide range of devices, making it a suitable solution for complex AV setups.
Extended reach
Effortlessly transmit your AV signals up to 328 ft with HDBaseT technology, making it suitable for large venues or multi-room setups without sacrificing quality.
Enhanced durability
Built with 4 KV and 8 KV ESD protection, this extender ensures your setup is safeguarded against electrical discharges, providing peace of mind and reducing the risk of damage to connected devices.
