Name: CATALYS T3650 24PTDATA 2X10GUPLINKLANBASE REMANUFACTUR
Brand: CISCO
SKU: 1TNETRNE-009342
Price: 3656.04 GBP
Availability: OutOfStock

Overview

Main features

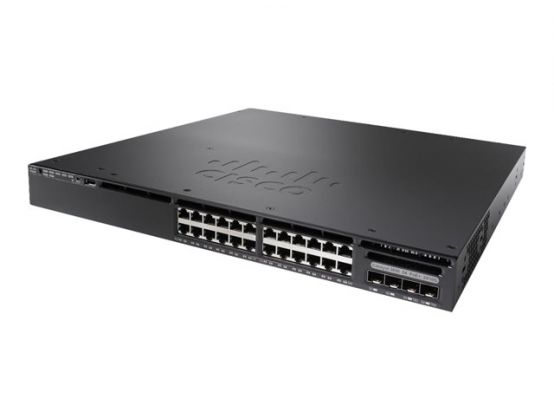

Cisco Catalyst 3650-24TD-L
Switch
Managed
24 x 10/100/1000 + 2 x 10 Gigabit SFP+
desktop, rack-mountable
refurbished

Overview

The Cisco Catalyst 3650 series switch delivers converged wired and wireless access on a single platform, creating an uncompromised user experience in any workspace. The converged system provides a single platform for wired and wireless networkwide visibility for faster troubleshooting, advanced security and quality of service (QoS) control, maximum resiliency with fast stateful recovery, and scale with distributed wired and wireless data plane.

Specification

Product Description Cisco Catalyst 3650-24TD-L - switch - 24 ports - Managed - rack-mountable

Device Type Switch - 24 ports - Managed - stackable

Enclosure Type Rack-mountable 1U

Subtype Gigabit Ethernet

Ports 24 x 10/100/1000 + 2 x 10 Gigabit SFP+

Performance Switching capacity: 88 Gbps ¦ Forwarding performance: 65.47 Mpps

Capacity IPv4 routes: 24000 ¦ Virtual interfaces (VLANs): 255 ¦ Switched virtual interfaces (SVIs): 1000

MAC Address Table Size 32000 entries

Jumbo Frame Support 9198 bytes

Routing Protocol Static IP routing

Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, CLI

Features Layer 2 switching, ARP support, trunking, VLAN support, IGMP snooping, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, MLD snooping, Dynamic ARP Inspection (DAI), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet

Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP)

Power AC 120/230 V (50/60 Hz)

Power Redundancy Optional

Dimensions (WxDxH) 44.5 cm x 44.8 cm x 4.4 cm

Weight 6.87 kg

Pricing Type Refurbished

Manufacturer Warranty Limited lifetime warranty

General

Device Type Switch - 24 ports - Managed - stackable

Enclosure Type Desktop, rack-mountable 1U

Subtype Gigabit Ethernet

Ports 24 x 10/100/1000 + 2 x 10 Gigabit SFP+

Performance Switching capacity: 88 Gbps ¦ Forwarding performance: 65.47 Mpps

Capacity IPv4 routes: 24000 ¦ Virtual interfaces (VLANs): 255 ¦ Switched virtual interfaces (SVIs): 1000

MAC Address Table Size 32000 entries

Jumbo Frame Support 9198 bytes

Routing Protocol Static IP routing

Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, CLI

Authentication Method Secure Shell (SSH), RADIUS, TACACS+

Features Layer 2 switching, ARP support, trunking, VLAN support, IGMP snooping, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, MLD snooping, Dynamic ARP Inspection (DAI), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet

Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP)

RAM 4 GB

Flash Memory 2 GB

Status Indicators Port transmission speed, port duplex mode, system, active, status

Expansion / Connectivity

Interfaces 24 x 1000Base-T RJ-45 ¦ 1 x USB Type A ¦ 1 x serial (console) RJ-45 management ¦ 1 x management (Gigabit LAN) RJ-45 management ¦ 1 x management (mini-USB) Type B management ¦ 2 x 1000Base-X SFP uplink ¦ 2 x 10GBase-X SFP+ uplink

Expansion Slots 1 (total) / 1 (free) x Stacking Module

Power

Power Device Internal power supply - hot-plug

Installed Qty 1

Max Supported Qty 2

Power Redundancy Optional

Power Redundancy Scheme 1+1 (with optional power supply)

Power Provided 250 Watt

Voltage Required AC 120/230 V (50/60 Hz)

Miscellaneous

Rack Mounting Kit Included

MTBF 661,800 hours

Compliant Standards CISPR 22 Class A, GOST, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, NOM, EN 61000-3-3, EN55024, EN55022 Class A, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, KCC, FCC Part 15 A, ISO 7779, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, KN22 Class A

Pricing Type Refurbished

Software / System Requirements

Software Included Cisco IOS LAN Base

Dimensions & Weight

Width 44.5 cm

Depth 44.8 cm

Height 4.4 cm

Weight 6.87 kg

Manufacturer Warranty

Service & Support Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - phone consulting - 90 days

Environmental Parameters

Min Operating Temperature -5 °C
