CISCO

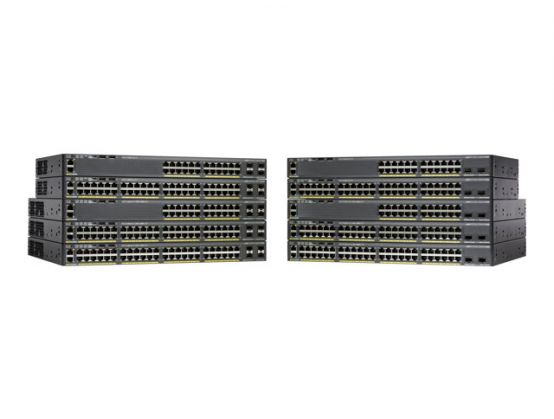

Cisco Catalyst 2960X-24TS-L - Switch - Managed - 24 x 10/100/1000 + 4 x Gigabit SFP - desktop, rack-mountable - refurbished

Name: Cisco Catalyst 2960X-24TS-L - Switch - Managed - 24 x 10/100/1000 + 4 x Gigabit SFP - desktop, rack-mountable - refurbished
Brand: CISCO
SKU: 1TNETNHS-031233
Price: 1010.06 GBP
Availability: OutOfStock

SKU

1TNETNHS-031233

Manufacture#: WS-C2960X24TS-L-RF

Be the first to review this product

£841.72

£1010.06 inc VAT

Checking delivery…

Product details

Switch
Managed
24 x 10/100/1000 + 4 x Gigabit SFP
desktop, rack-mountable

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

Cisco Catalyst 2960X-24TS-L
Switch
Managed
24 x 10/100/1000 + 4 x Gigabit SFP
desktop, rack-mountable
refurbished

Overview

Cisco Catalyst 2960-X series switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications. Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure and energy-efficient business operations.

Specification

Product Description Cisco Catalyst 2960X-24TS-L - switch - 24 ports - Managed - rack-mountable

Device Type Switch - 24 ports - Managed - stackable

Enclosure Type Rack-mountable 1U

Subtype Gigabit Ethernet

Ports 24 x 10/100/1000 + 4 x Gigabit SFP

Performance Switching capacity: 216 Gbps ¦ Forwarding performance (64-byte packet size): 71.4 Mpps

Capacity Active VLANs: 1023

Jumbo Frame Support 9216 bytes

Remote Management Protocol SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, CLI

Features Full duplex capability, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, STP support, RSTP support, MSTP support, DHCP snooping, DTP support, PAgP support, TFTP support, ACL support, QoS, MLD snooping, DAI, Cisco EnergyWise technology, URPF, UDLD, Rapid PVST+, SRR, LLDP support, DHCP relay, LACP, MAC Address Notification, RSPAN, HSRP support, Energy Efficient Ethernet, MIB, MVR, SPQ, CoS, Cisco FlexStack Plus, DSCP support

Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.1AX

Power AC 120/230 V (50/60 Hz)

Power Redundancy Optional

Dimensions (WxDxH) 44.5 cm x 27.9 cm x 4.5 cm

Weight 4 kg

Pricing Type Refurbished

Manufacturer Warranty Limited lifetime warranty

General

Device Type Switch - 24 ports - Managed - stackable

Enclosure Type Desktop, rack-mountable 1U

Subtype Gigabit Ethernet

Ports 24 x 10/100/1000 + 4 x Gigabit SFP

Performance Switching capacity: 216 Gbps ¦ Forwarding performance (64-byte packet size): 71.4 Mpps

Capacity Active VLANs: 1023

Jumbo Frame Support 9216 bytes

Max Units In A Stack 8

Remote Management Protocol SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, CLI

Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+

Processor APM86392: 600 MHz

RAM 512 MB

Flash Memory 128 MB

Status Indicators Port transmission speed, port duplex mode, system, status, link/activity

Expansion / Connectivity

Interfaces 24 x 1000Base-T RJ-45 ¦ 1 x console RJ-45 ¦ 1 x mini-USB Type B management ¦ 1 x USB Type A ¦ 1 x 100Base-TX RJ-45 management ¦ 4 x SFP uplink

Expansion Slots 1 (total) / 1 (free) x Stacking Module

Power

Power Device Internal power supply

Power Redundancy Optional

Voltage Required AC 120/230 V (50/60 Hz)

Power Consumption Operational 28 Watt

Features Redundant Power System (RPS) connector

Miscellaneous

MTBF 564,910 hours

Compliant Standards CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, RoHS, FCC CFR47 Part 15, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, KN22 Class A, RoHS 2011/65/EU, EN 55022 Class A, EN 300 386

Pricing Type Refurbished

Software / System Requirements

Software Included Cisco IOS LAN Base

Dimensions & Weight

Width 44.5 cm

Depth 27.9 cm

Height 4.5 cm

Weight 4 kg

Manufacturer Warranty

Service & Support Limited warranty - advance parts replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days

Environmental Parameters

Min Operating Temperature -5 °C

Max Operating Temperature 45 °C

Humidity Range Operating 10 - 95% (non-condensing)

Min Storage Temperature -25 °C

Max Storage Temperature 70 °C

Humidity Range Storage 10 - 95% (non-condensing)
