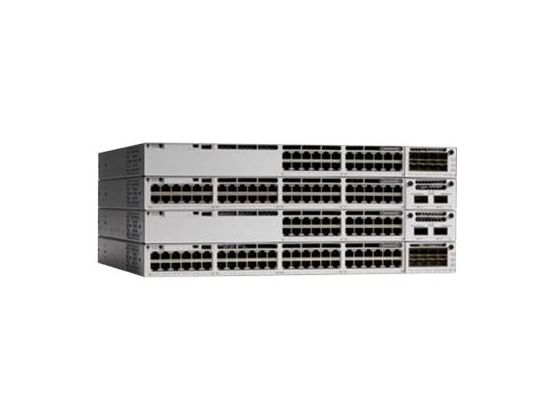

Cisco Catalyst 9300 - Network Advantage - switch - L3 - Managed - 48 x 10/100/1000 - rack-mountable

Name: Cisco Catalyst 9300 - Network Advantage - switch - L3 - Managed - 48 x 10/100/1000 - rack-mountable
Brand: CISCO
SKU: 1TNETNHS-032723
Price: 4210.13 GBP
Availability: OutOfStock

SKU

1TNETNHS-032723

Manufacture#: C9300-48T-A

Be the first to review this product

£3508.44

£4210.13 inc VAT

Checking delivery…

Product details

Network Advantage
switch
L3
Managed

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

Cisco Catalyst 9300
Network Advantage
switch
L3
Managed
48 x 10/100/1000
rack-mountable

Overview

The Catalyst 9300 series is an advanced stackable switching platform. These network switches are built for security, IoT, and the cloud.

Specification

Product Description Cisco Catalyst 9300 - Network Advantage - switch - 48 ports - Managed - rack-mountable

Device Type Switch - 48 ports - L3 - Managed - stackable

Enclosure Type Rack-mountable 1U

Subtype Gigabit Ethernet

Ports 48 x 10/100/1000

Performance Switching capacity: 128 Gbps ¦ Stacking bandwidth: 480 Gbps ¦ Forwarding rate: 190.48 Mpps

Capacity IPv4 routing table entries: 32000 ¦ IPv6 routing table entries: 16000 ¦ Flexible NetFlow entries: 64000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 2000

MAC Address Table Size 32000 entries

Jumbo Frame Support 9198 bytes

Routing Protocol OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng

Remote Management Protocol SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF

Features DHCP support, trunking, Syslog support, full duplex mode, SSO, CBWFQ, WRED, STP support, ACL support, QoS, NSR, RSPAN, MIB, Cisco StackWise-480 technology, Cisco StackPower technology, FNF, MSDP, 802.1x authentication, 16MB packet buffer, FTP client, MACsec support, 3 fans, CoPP, VXLAN, AVC, SSM, integrated Wireshark, VLAN Double Tagging (Q-in-Q), EoMPLS, H-VPLS, Private VLAN, L3VPN support, ERSPAN, SGT caching, SGACL, ITSM integration, third-party IPAM integration

Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s

Power AC 120/230 V (50 - 60 Hz)

Power Redundancy Optional

Dimensions (WxDxH) 44.5 cm x 44.5 cm x 4.4 cm

Weight 7.45 kg

System Requirements Cisco IOS Universal

Manufacturer Warranty Limited lifetime warranty

General

Device Type Switch - 48 ports - L3 - Managed - stackable

Enclosure Type Rack-mountable 1U

Subtype Gigabit Ethernet

Ports 48 x 10/100/1000

Performance Switching capacity: 128 Gbps ¦ Stacking bandwidth: 480 Gbps ¦ Forwarding rate: 190.48 Mpps

Capacity IPv4 routing table entries: 32000 ¦ IPv6 routing table entries: 16000 ¦ Flexible NetFlow entries: 64000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 2000

MAC Address Table Size 32000 entries

Jumbo Frame Support 9198 bytes

Routing Protocol OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng

Remote Management Protocol SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF

Encryption Algorithm 128-bit AES

Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s

RAM 8 GB

Flash Memory 16 GB

Status Indicators Status

Expansion / Connectivity

Interfaces 48 x 1000Base-T RJ-45 ¦ 1 x USB 2.0

Expansion Slots 1 Expansion Slot

Power

Power Device Internal power supply - hot-plug

Installed Qty 1

Max Supported Qty 2

Power Redundancy Optional

Power Provided 350 Watt

Voltage Required AC 120/230 V (50 - 60 Hz)

Miscellaneous

MTBF 305,870 hours

Compliant Standards CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, EN 300 386, TVCN 7317, VCCI V-3/2009 Class A, CAN/CSA-C22.2 No. 60950-1

Software / System Requirements

Software Included Cisco ONE C9300 DNA Advantage 48-port Term license, 25 x Cisco ONE ISE BASE Licenses Term, 25 x Cisco ONE ISE PLUS Licenses Term, Cisco ONE StealthWatch License Term - 25 Flow Licenses, Cisco ONE C9300 Advantage Add-On Term

OS Required Cisco IOS Universal

Dimensions & Weight

Width 44.5 cm

Depth 44.5 cm

Height 4.4 cm

Weight 7.45 kg

Manufacturer Warranty

Service & Support Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days

Environmental Parameters

Min Operating Temperature -5 °C

Max Operating Temperature 45 °C

Humidity Range Operating 5 - 90% (non-condensing)

Min Storage Temperature -40 °C

Max Storage Temperature 70 °C

Humidity Range Storage 5 - 90% (non-condensing)
